OSD settings on Kamvas Pro 16 Plus (4K) products can be done with the digital pen.
Long press the power switch button to call up the OSD menu, and then use the digital pen to adjust the settings. The user interface is designed in a minimalist way, where options including Brightness, Color Temperature, General Settings and Exit are reserved, while seldom used ones are eliminated.

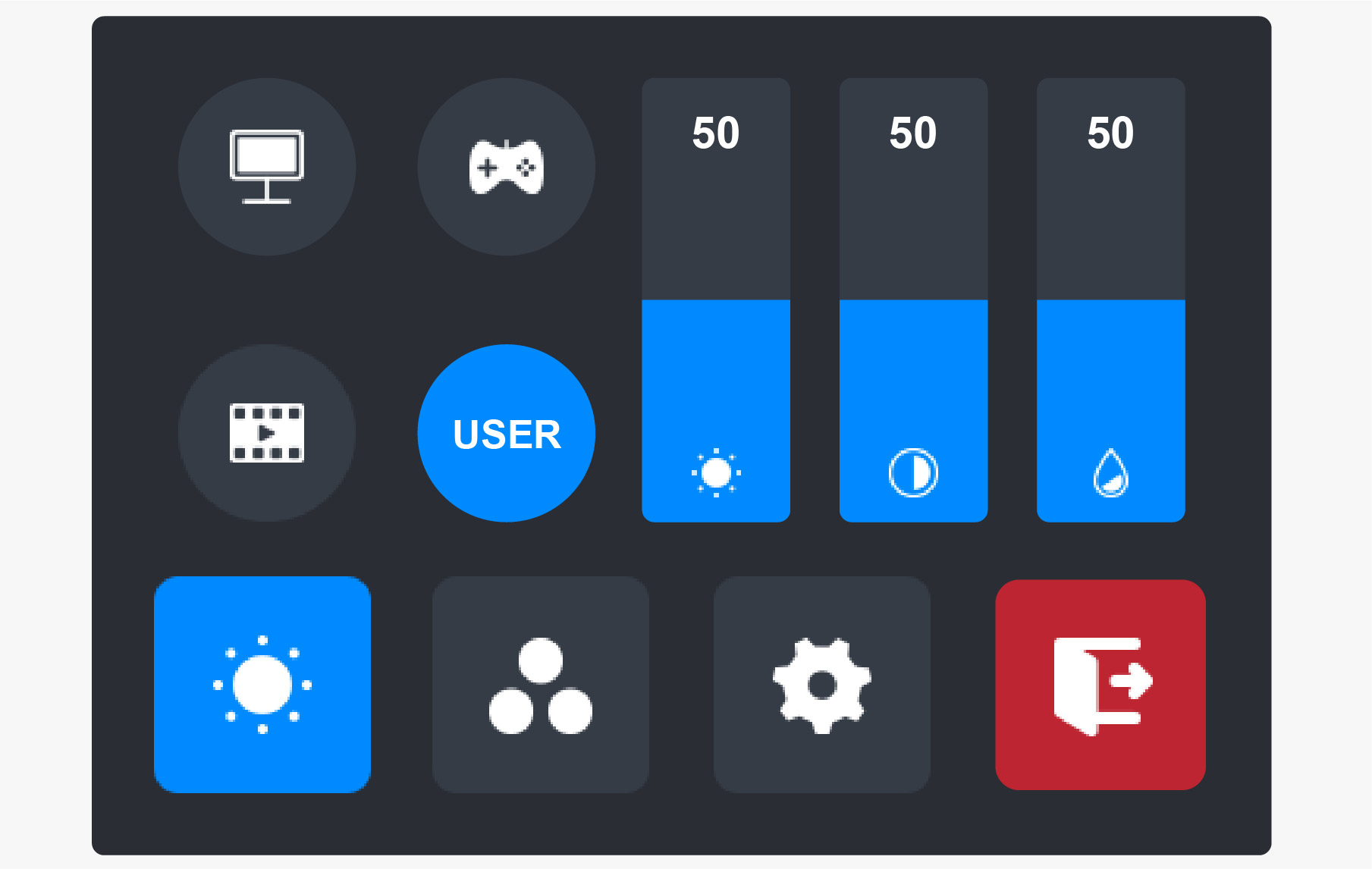

There are four mode of "Standard", "Game", "Movie" and "USER" can be choosed. In "USER" mode, you can adjust the brightness by dragging the bar on the upper right.

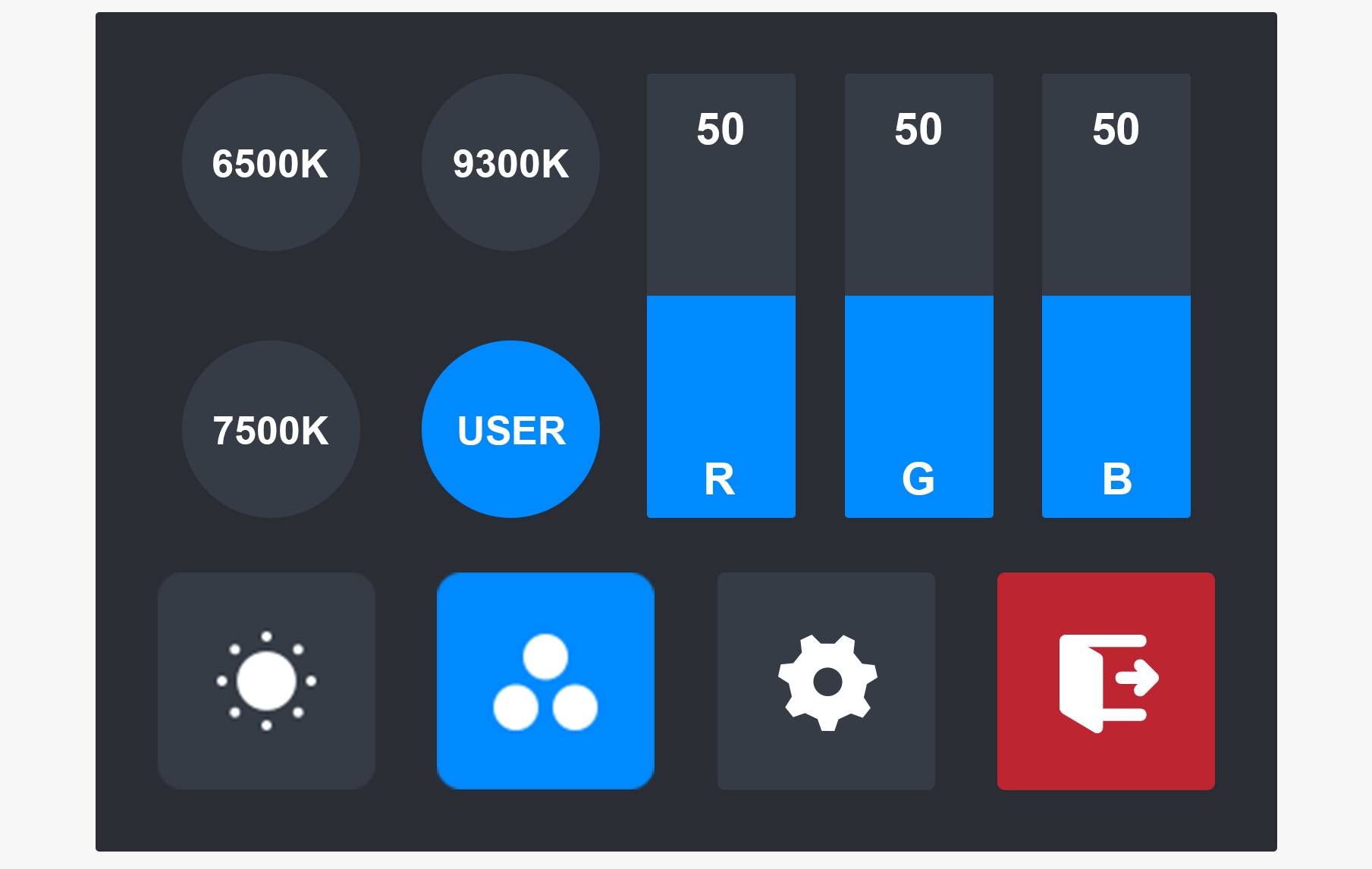

There are four mode of "6500K", "7500K", "9300K" and "USER" can be choosed. In "USER" mode, you can adjust the Color temperature by dragging the bar on the upper right.

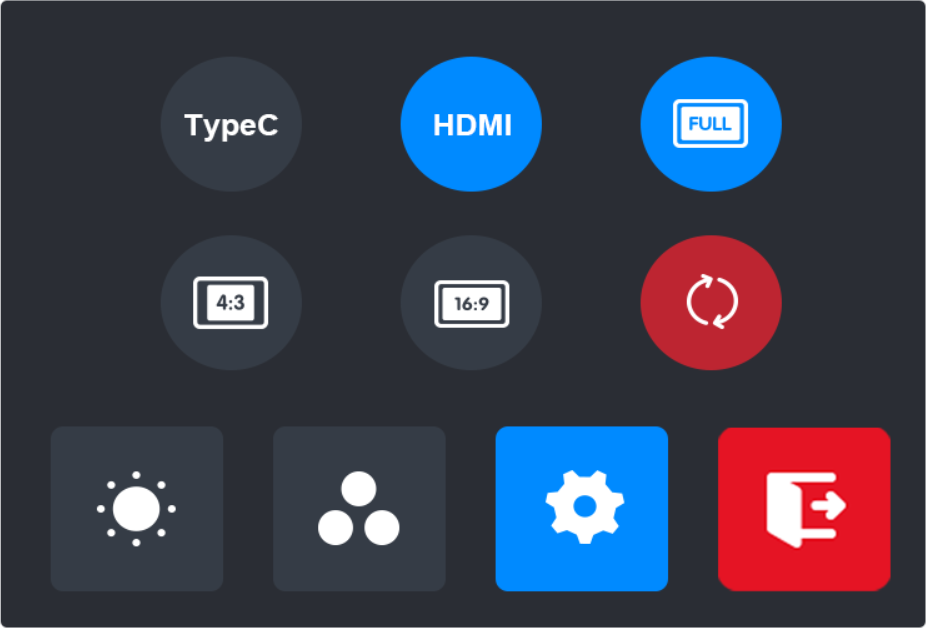

①TypeC/HDMI: Display the current signal connection mode.
②FULL: Switch the display ratio to FULL.
③4:3 : Switch the display ratio to 4:3.
④16:9 : Switch the display ratio to 16:9.
⑤Reset : All the setting options will be restored to the default setting.
