The "Power Button" can be used as a Five-direction Switch. The specific operating instructions are as follows:
Current State
Operation
Function
Off
Press the center of the switch button
Power on the pen computer
On
↑ Push the switch button up
Adjust screen brightness (+)
↓ Push the switch button down
Adjust screen brightness (-)
→ Push the switch button to the right
Call up the OSD menu
Go to sleep by default (customize in the system)
Long press the center of the switch button
Forcibly shut down the pen computer
OSD Interface
Up
Down
← Push the switch button to the left
Back to the previous menu
Confirm/Go to the next menu
The function of the “Power Button" can be set in the system.

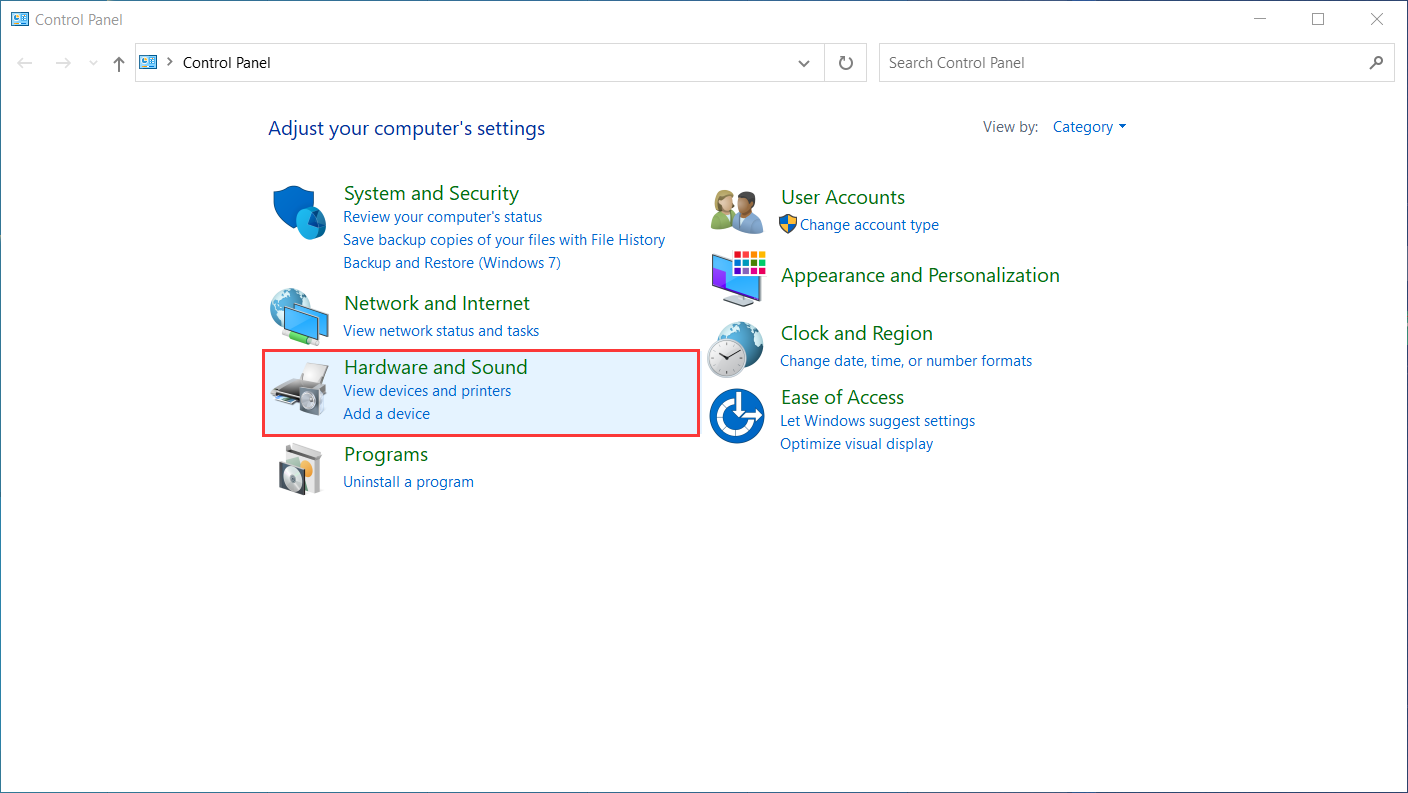

1. Open the Control Panel > Hardware and Sound.
2. Power Options>Change what the power buttons do.
3. Click the drop-down box behind the option "When I press the power button" to select the function you want to set for the power button.
1.Capacitive TouchCapacitive touch, in cooperation with the electromagnetic digital pen, can greatly improve creation efficiency.
Touch gestures preset in Windows are supported. Other functions depend on whether they are supported by the software.
General Functions
Finger
Gestures
Action
One-finger
Tap
Select
Double tap
Open the file
Press and hold
Show more commands (like right-clicking)
Press and drag
Move the file
Two-finger
Slide horizontally or vertically
Scroll
Pinch in or stretch out
Zoom out or zoom in
Three-finger
Swipe up
Show all open windows
Swipe down
Show the desktop
Swipe left or right
Switch between open apps or windows
Four-finger
Switch desktops
Notice: The touch input can be disabled in the driver.

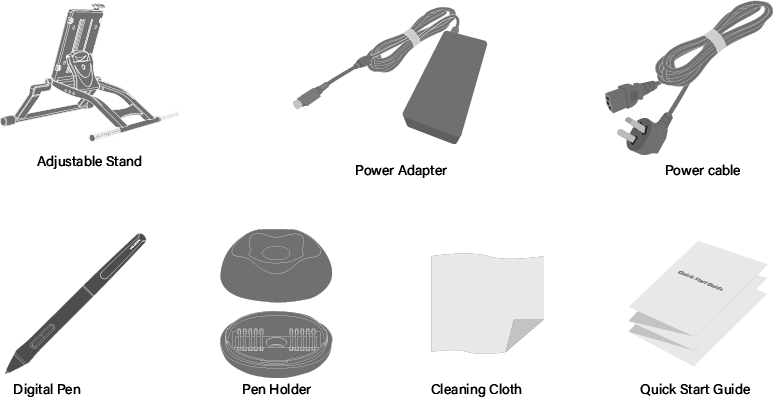

2.Accessories
3.Stand Adjustment
This adjustable drawing stand is specially designed for your all-in-one pen computer and you can adjust it to find a comfortable angle according to your usage habit when painting and creating.
4.ConnectionConnect the pen computer to the power supply with the power adaptor and power cord in the package. Press the POWER button to start it.

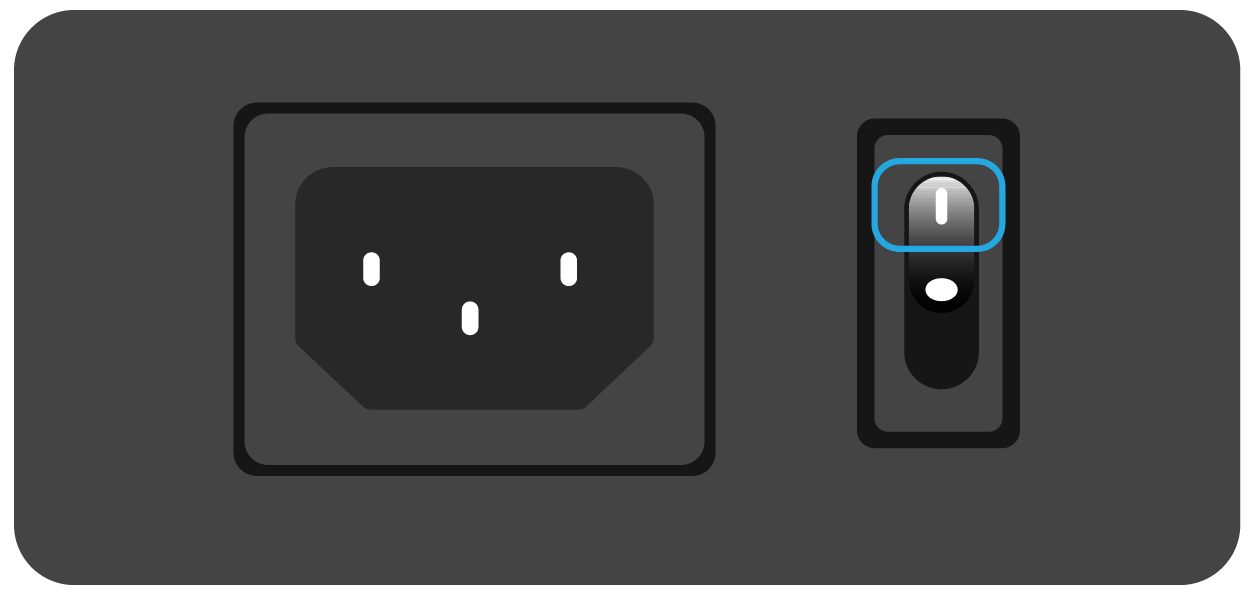

*Please set the switch on the power adaptor to "I".
