Kamvas Pro 16 (4K)

Step into Ultra Clarity

Easy to carry pen display
What you see is
what it looks like.

4K images beyond your imagination.

The screen of Kamvas Pro 16(4K) has a resolution that is four times that of a Full (1080p) HD screen. With more than 8 million pixels crammed into this 15.6 inch screen, Kamvas Pro 16(4K) ensures a stunning picture quality.

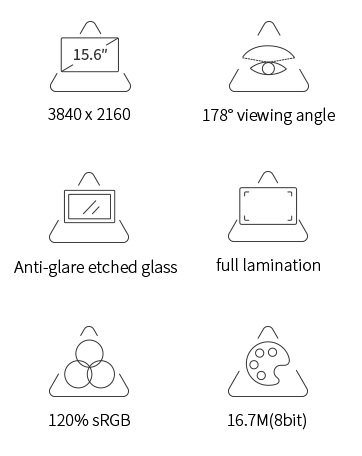

  • 3840 x 2160
    Resolution
  • 1000:1
    Contrast Ratio

Enjoy this colorful world.

Users can enjoy accurate color presentation and smooth color gradient when drawing on the Kamvas Pro 16(4K) that boasts 120% sRGB in color gamut, which ensures everything you see is vibrant and natural.
  • 120% sRGB
    Gamut
  • 16.7M(8bit)
    Display Color

Draw on this screen is like draw on paper.

The anti-glare etched glass and the screen are seamlessly laminated together to increase the screen transparency and decrease parallax. Besides, the anti-glare etched glass can also reduce the reflection effectively and bring users pen-on-paper drawing experience.

Digitize the way
you draw.

Slim and sleek design shows the beauty of craft.

Kamvas Pro 16 (4K) is a compact and elegant pen display with the metal unibody design. The 13mm thickness makes it lightweight and easy to carry, while the 15.6inch panel provides users with a wide space to unleash their creativity anytime and anywhere.
  • Panel Size
    15.6inch
  • Thickness
    13mm
  • Weight
    1.27kg
  • The al-alloy rear case in Silvery Frost color greatly demonstrate the unique beauty of Kamvas Pro 16(4K).

    Silvery Frost
  • The durable Al alloyed rear case that boasts delicate touch demonstrates the unique beauty of metal.

    Al alloyed rear case

Get the creativity flowing with the digital pen PW517.

Innovative PenTech3.0 for natural drawing.

The digital pen PW517 that featured PenTech3.0 boasts a better accuracy of ±0.3mm, which allows users to spread their ideas accurately and naturally on the pen display just like on a piece of paper. Users can also use the digital pen to adjust the OSD configuration such as brightness and color temperature.
Stable pen nib. Hold the Power Button for 3 seconds to call out the OSD Menu.
* OSD Menu can also be adjusted on Windows with the Driver V14 installed.

Inspirations are captured as pen tilt.

Equipped with 8192 levels of pressure sensitivity and superior report rate, digital pen PW517 can capture delicate strokes without any lagging. Users can also tilt the digital pen to add shadings or achieve brush effects.
  • ±60° tilt support
  • 8192 levels of pressure sensitivity

Explore more possibilities than ever.

Easy connections for great Views.

Dual USB-C ports make connections between Kamvas Pro 16 (4K) and computer, game console, and Android device fast and convenient. Users can enjoy an amazing 4K visual effect and a tidy desktop with the connection either via a single 3-in-1 cable or a USB-C to USB-C cable and a power cable.
*USB-C ports on phones, tablets and PCs should at least support USB3.1 GEN1 data transfer protocol and DP1.2.
* List of Compatible Android devices >>

Kamvas Pro 16 (4K)

Kamvas Pro 16

Appearance

  • Color: Silvery Frost
  • Dimension: 402.7 x 257.4 x 13mm
  • Working Area: 345.6 x 194.4mm
  • Net Weight: 1.27Kg
  • Touch: -
  • Stand: Foldable Stand ST200 20°/45°
  • Video Interface: USB-C, Full-Featured USB-C
  • Color: silver black
  • Dimension: 437.8 x 251.2 x 11.5mm
  • Working Area: 344.16 x 193.59mm
  • Net Weight: 1.35Kg
  • Touch: touch bar
  • Stand: Foldable Stand ST200/ST300 20°/45°
  • Video Interface: USB-C

Screen

  • Resolution: 3840 x 2160(16:9)UHD
  • LCD Type: IPS
  • AG Glass: Anti-glare etched glass
  • Full Lamination: YES
  • Contrast Ratio: 1000:1
  • Brightness: 220cd/m2 (Max.)
  • Response Time: 25ms
  • Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR>10)
  • Gamut Volume: 120% sRGB
  • Display Color: 16.7M(8bit)
  • Resolution: 1920 x 1080(16:9)
  • LCD Type: IPS
  • AG Glass: Anti-glare etched glass
  • Full Lamination: YES
  • Contrast Ratio: 1000:1
  • Brightness: 220cd/m2
  • Response Time: 25ms
  • Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR>10)
  • Gamut Volume: 120% sRGB
  • Display Color: 16.7M(8bit)

Technical Specifications

  • Digital Pen: PW517
  • Pen Technology: Battery-Free Electromagnetic Resonance
  • Pen Resolution: 5080LPI
  • Pressure Sensitivity: 8192Levels
  • Tilt Support: ±60°
  • Sensing Height: 10mm
  • Report Rate: >220PPS
  • Accuracy: ±0.3mm(center) ±2mm(corner)
  • Press Keys: -
  • Digital Pen: PW507
  • Pen Technology: Battery-Free Electromagnetic Resonance
  • Pen Resolution: 5080 LPI
  • Pressure Sensitivity: 8192Levels
  • Tilt Support: ±60°
  • Sensing Height: 10mm
  • Report Rate: >220PPS
  • Accuracy: ±0.5mm(Center) ±3mm(Corner)
  • Press Keys: 6 Programmable press keys

Operating Conditions

  • Input Voltage: AC 100-240V, 50/60Hz
  • Output Voltage: 5V 3A
  • Power Consumption: ≤15W
  • Standby Consumption: ≤0.3W
  • Working Temp. and Humidity: 0-40°C 、 20-80%
  • Storage Temp. and Humidity: -20°C~60°C、 10-90%
  • Input Voltage: 100-240VAC,50/60Hz
  • Output Voltage: 12V 1A
  • Power Consumption: ≤9W
  • Standby Consumption: ≤0.2W
  • Working Temp. and Humidity: 0-40°C, 20-80%
  • Storage Temp. and Humidity: -20°C~60°C, 10-90%

OS Compatibility

  • Windows 7 or later
    macOS 10.12 or later
    Android(USB3.1 DP1.2)
    Linux
  • Windows 7 or later
    macOS 10.12 or later
    Linux

Model

  • GT1561
  • GT-156

Model Comparison
