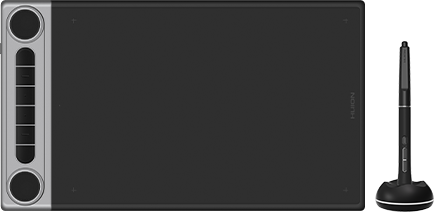

Inspiroy Dial 2 V2
Inspiroy Dial 2
Dial into Efficiency
Customizable Controls
2 Dial Controllers
6 Programmable Keys
PenTech 4.0
16K Pressure Levels
0.35mm Retraction Distance
2g Initial Activation Force
10.5×6.56-Inch Size
Paper-like Panel
16H
Battery Life
Bluetooth
Connection
Wide Compatibility
PenTech 4.0
Not just an upgrade in technology, but experience.
PW600
The Standard Battery-Free Pen
Inspiroy Dial 2 V2 upgrades its predecessor with PenTech 4.0 technology and the PW600 stylus. The stylus features the HV200 chip, which optimizes pressure response, cursor tracking, and stroke stability to deliver more precise, fluid lines. It includes three side keys and an eraser, allowing quick brush switching, undo, and erase functions. Its anti-slip silicone grip enhances comfort during extended use. As a battery-free stylus, it's always ready.
  • Tail Eraser
  • Battery-Free[1]
  • 3 Side Keys
  • 2 Pen Nib Types
From Feather-Light to Bold Strokes
PenTech 4.0 divides pen pressure into 16,384 levels. Artists can apply different pressure for different line widths and shading, making drawing and writing more natural. Additionally, ±60° tilt support[2][3] helps imitate effects like shading or broad strokes when the pen is tilted, like a real brush or pen.
  • 16,384 Levels
    of Pressure Sensitivity
  • ±60°
    Tilt Support
A 2g initial activation force[4] can precisely detect even the lightest touch for more delicate lines. The maximum force range is adjustable through the driver from 200g to 500g[5].
  • 2g
    Initial Activation Force
  • 200g-500g
    Adjustable Maximum Force
Stable and Accurate Pen Performance
Huion PenTech 4.0 prioritizes pen performance. It minimizes cursor offset with tilt auto-alignment[6] to keep pen tracking precise and consistent from different drawing angles.
  • 0.35mm
    Retraction Distance
    It optimizes the retraction distance from the predecessor with no more than 0.35mm[7] to make the pen tip more stable and solid.
  • Felt Nib
    Standard Nib
    Two types of pen nibs are included. Choose standard nibs for smoother gliding or felt nibs for more paper-like friction.
Dials & Press Keys
Faster Access, Smoother Creation
Inspiroy Dial 2 V2 combines dual dial controllers, dual function switch keys, and shortcut press keys on its left side, helping illustrators, designers, and digital content creators quickly access and toggle frequently used tools and functions to reduce workflow interruptions for a more efficient creative process.
Dual Dials, Double Efficiency
Each of the dual dial controllers can be set to four functions respectively, which you can toggle using the function-switch key. You can assign the dials to commonly used operations—such as canvas zoom and rotation, brush size adjustment, undo/redo, and page switching—to boost work efficiency.
  • Brush
  • Eraser
  • Eyedropper
  • Save
  • Hand
  • Undo
Customized Shortcuts,
Streamlined Workflow
The six press keys are preset and support custom shortcuts for various drawing software, improving workflow efficiency. Raised bumps on the keys make them easy to locate by touch, and their near-silent feedback minimizes sound interference so you can stay focused.
Paper-Like Texture
The panel features a fine matte texture that provides natural friction, making it feel like writing on real paper, while also delivering anti‑slip performance and excellent durability. With the PenTech 4.0 pen, drawing and writing become even more natural and smooth.
Bluetooth 5.0
Wireless Freedom with Long-lasting Battery
It supports Bluetooth 5.0 connectivity. With a built-in 1,300mAh battery, the tablet delivers up to 16 hours of continuous use and takes as short as only 4.5 hours[8] to fully charge. Wireless connectivity keeps your desktop clutter-free, saving creative workspace. For added flexibility, It also supports a USB-C cable connection to your computer[9], for different working habits.
  • 4.5 Hours
    Charge Time
  • 16 Hours
    Battery Life
Slim Body
Portable and Comfortable

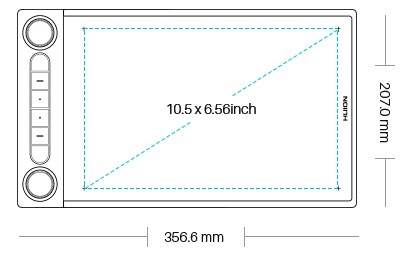

With a 10.5 × 6.56-inch active area and an 8mm slim profile, Inspiroy Dial 2 V2 balances ample drawing space with great portability. Its smooth contours, rounded edges, and metal back case deliver a comfortable and natural experience both visually and in hand.
  • Rounded Corner
  • 8mm Slim Body
  • Metallic Finish
Symmetrical Design
Flexible and Convenient
The tablet features a symmetrical layout with press keys and dual dial controllers, as well as a centered USB-C port, ensuring convenient connectivity from any orientation. Whether you're right- or left-handed, or when rotated vertically for comics, posters, or other portrait-oriented projects, it offers an intuitive creative workflow.
Draw Anywhere
From Desktop to Mobile Creativity
Inspiroy Dial 2 V2 can connect to desktop computers, laptops, Macs, Android tablets, and smartphones. It automatically maps the active areas on computers and smartphones[10], making it ideal for professional drawing and content creation at the desk, as well as on-the-go sketching and note-taking.
Seamless Drawing Experience with HiPaint
Paired with HiPaint, Inspiroy Dial 2 V2 delivers a smoother, more enhanced mobile drawing experience. When connected to an Android phone or tablet via Bluetooth, HiPaint automatically maps the active drawing area to match your mobile device's screen aspect ratio. It also supports pen shortcut customization.
More than Drawing
  • 3D Modeling
  • Graphic Design
  • Photo Editing
  • Illustration
  • Animation
  • Quick Sketch
Wide Compatibility
Compatible Operating System.
  • Windows
    (Wired: Windows 7 or later)
    (Bluetooth: Windows 10 or later 64-bit)
  • macOS
    (Wired: macOS 10.12 or later)
    (Bluetooth: macOS 10.13 or later)
  • Android
    (Bluetooth: Android 6.0 or later)
  • HarmonyOS
    (Bluetooth: HarmonyOS 2.0 or later)
  • ChromeOS
    (Wired and Bluetooth: ChromeOS 88 or later)
  • LinuxOS
    (Wired: Ubuntu 20.04 LTS)
Recommended Software.
Inspiroy Dial 2 V2 supports a variety of mainstream software on the market. You can customize pen side keys, pressure sensitivity, and working area settings through the driver to enhance your experience.
Standard Included & Optional Accessories
  • In the Box
    Pen Tablet, Battery-free Pen, USB-C Cable, Pen Holder, Standard Nib x 5, Felt Nib x 5, Quick Start Guide
  • Pen PW600L
    Shop Now >>
  • Slim Pen PW600S
    Shop Now >>
  • Sleeve Bag
    Shop Now >>
  1. [1] PenTech 4.0 utilizes Electron Magnetic Resonance (EMR) technology, sensing without the need for batteries.
  2. [2] A 60-degree angle refers to the angle from the pen being vertical to tilted.
  3. [3] Tilt support is only available in partial software. Please confirm whether the software you are using supports this feature before use.
  4. [4] The data is based on testing conducted in an ideal environment at Huion's internal laboratory.
  5. [5] The data is based on testing conducted in an ideal environment at Huion's internal laboratory. It can be adjusted in multiple levels from 200g to 500g.
  6. [6] Tilt Auto-Alignment technology, as tested in Huion's internal research lab, achieves an accuracy of ±0.2mm when the pen is used at a 30-degree angle to the screen. To learn more information about tilt auto-alignment, please refer to this article.
  7. [7] Based on internal testing by Huion's laboratory, the Retraction Distance of the pen nib, from a natural state to fully compressed onto the tablet surface, is 0.35mm.
  8. [8]The data is based on testing conducted in an ideal environment at Huion's internal laboratory.
  9. [9] For Android devices, the pen tablet supports Bluetooth connection only and is incompatible with wired USB connection. It takes 2.5 hours to get fully charged under a 5V-1A power supply, and 4.5 hours at 5V-0.5A.
  10. [10] After the pen tablet is connected to a smartphone, the working area will switch to phone mode by default.

Inspiroy Dial 2 V2

Inspiroy Dial 2

Model

  • Q640M
  • Q630M

Appearance

  • Color： Black
  • Dimension： 356.6 x 207 x 8mm
  • Working Area： 266.7 x 166.7 mm （10.5 x 6.56inch）
  • Net Weight： 710g
  • Touch：
  • Interface： USB-C
  • Color： Black
  • Dimension： 356.6 x 207 x 8mm
  • Working Area： 266.7 x 166.7 mm （10.5 x 6.56inch）
  • Net Weight： 710g
  • Touch：
  • Interface： USB-C

Technical Specifications

  • Digital Pen： PW600
  • Pen Technology： PenTech 4.0
  • Pen Resolution： 5080 LPI
  • Pressure Sensitivity： 16,384 Levels
  • Tilt Support： ±60°
  • Sensing Height： >10mm
  • Report Rate： ＞300PPS (wireless connectiviy);
    ＞133PPS ( Bluetooth connectiviy)
  • Accuracy： ±0.3mm
  • Press Keys： 6 Programmable Press Keys+2 Dials+2 Function-switch Buttons
  • Digital Pen： PW517
  • Pen Technology： Battery-free Electromagnetic Resonance
  • Pen Resolution： 5080 LPI
  • Pressure Sensitivity： 8192 Levels
  • Tilt Support： ±60°
  • Sensing Height： >10mm
  • Report Rate： >300PPS
  • Accuracy： ±0.3mm
  • Press Keys： 6 Programmable Press Keys+2 Dials+2 Function-switch Buttons

Connection

  • Automatic Sleep： 15mins
  • Wireless Connectivity： Bluetooth 5.0
  • Communication Distance： 5-10m (Depends on the actual environment)
  • Charge Time： 5V 1A: About 2.5hrs; 5V 0.5A: About 4.5hrs
  • Battery Life： About 16 hours
  • Battery Capacity： 1,300mAh
  • Automatic Sleep： 15mins
  • Wireless Connectivity： Bluetooth 5.0
  • Communication Distance： 5-10m (Depends on the actual environment)
  • Charge Time： 5V 1A: About 2.5hrs; 5V 0.5A: About 4.5hrs
  • Battery Life： About 18 hours
  • Battery Capacity： 1300mAh

OS Compatibility

  • Windows 7 or later (Wired)
    Windows 10 or later 64-bit (Bluetooth)
    macOS 10.12 or later (Wired)
    macOS 10.13 or later (Bluetooth)
    ChromeOS (Wired and Bluetooth)
    Android 6.0 or later (Bluetooth)
    HarmonyOS 2.0 or later (Bluetooth)
    Linux (Ubuntu 20.04 LTS) (Wired)
  • Windows 7/8/8.1 (Wired)
    Windows 10 64bit (Bluetooth)
    macOS 10.12 or later
    Chrome OS 88 or later (Wired)
    Android 6.0 or later (Bluetooth)
    Linux (Ubuntu 20.04 LTS) (Wired)

Model Comparison
