Kamvas 16 (Gen 3)
15.8" 2.5K
QHD Screen
Advanced
PenTech 4.0
Nano-Etched
Canvas Glass
Precise Color
Reproduction
Multiple Shortcuts
One Cable
Connection
Switch between Display and Tablet
Kamvas 16 (Gen 3) features a 2.5K QHD (2560×1440) resolution, a significant improvement over its predecessor. With its 15.8-inch screen[1], Kamvas 16 (Gen 3) achieves a pixel density of 186 PPI, providing a sharp and crystal-clear view for artists.
Evolve Details to Next Level
The First Step in Drawing, The Accurate Color.
Accurate color display is essential to creators. With the high-quality screen boasting beautiful color, Kamvas 16 (Gen 3) accurately covers multiple color gamuts[2]. You can use it to create comics, animations, and more.
  • 99% sRGB
    Gamut Coverage
  • 90% Adobe RGB
    Gamut Coverage
  • 99% Rec.709
    Gamut Coverage
  • 16.7 Million
    Display Color

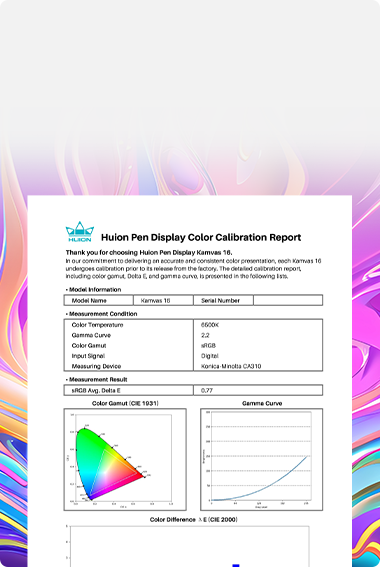

You can select sRGB, Rec.709, Adobe RGB or Native Mode in the OSD menu[3] to create. Each Kamvas 16 (Gen 3) undergoes rigorous factory color calibration to achieve ΔE<1.5 ensuring accurate color representation. It also includes a factory calibration report[4], so you can use the correct colors to enhance your artistic expression.

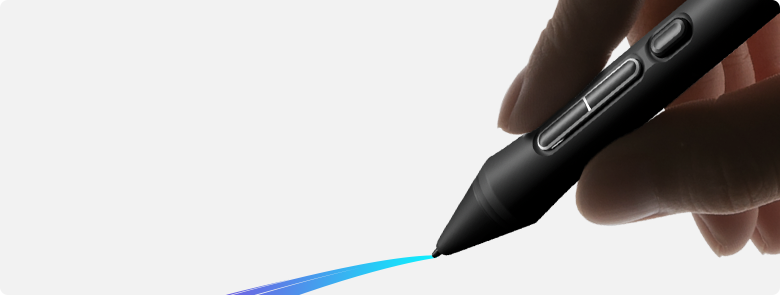

PenTech 4.0
Not just an upgrade in technology, but experience.

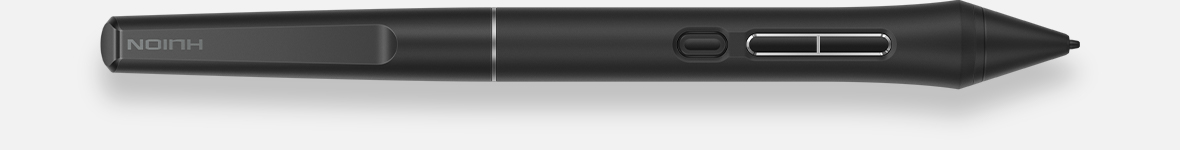

PW600L.
Like a Real Pen.
Kamvas 16 (Gen 3) features Huion's latest PenTech 4.0 technology. The PW600L pen is equipped with the HV200 chip, significantly enhancing pen pressure sensitivity and cursor tracking. With three side keys and a dust-proof grip, it not only provides a real pen-like experience but also boosts efficiency.
  • Battery-Free[5]
    No need for charging.
  • Dust-Resistant Silicone Grip
    Enhanced comfort and dust-proof.
  • 3 Side Keys
    Customizable shortcuts, perfect for efficiency.

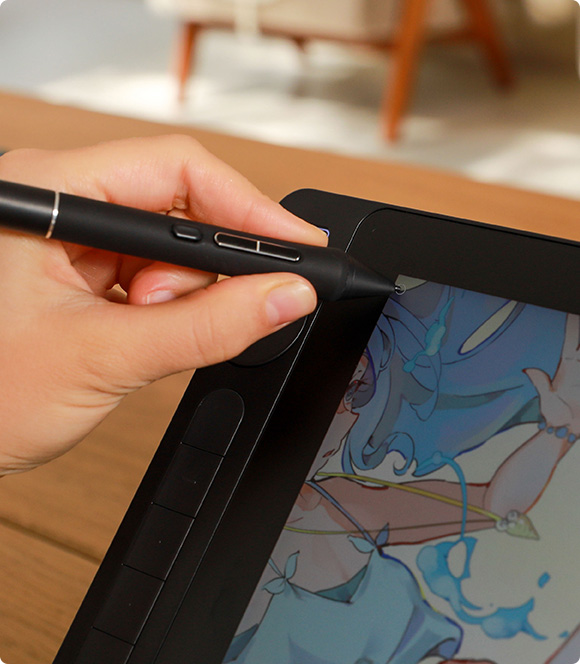

Easily and Accurately.
Ensuring precise pen performance is a top priority for Huion. With revolutionary PenTech 4.0, the edge precision[6] of the screen was enhanced, and tilt auto-alignment[7] decreased the cursor offset issues. Moreover, we've reduced the size of the pen nib[8] to prevent any obstruction of your line of sight that might occur.

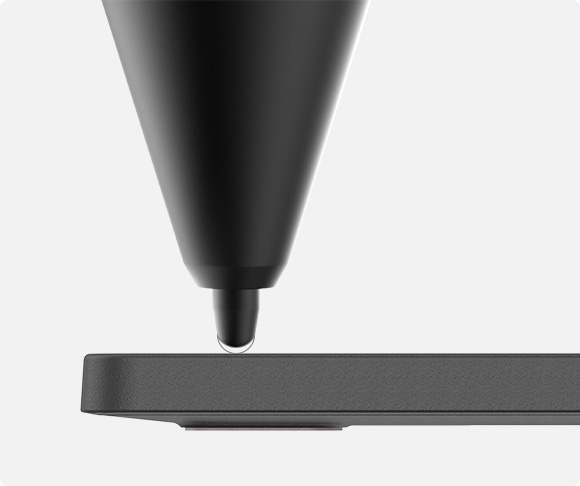

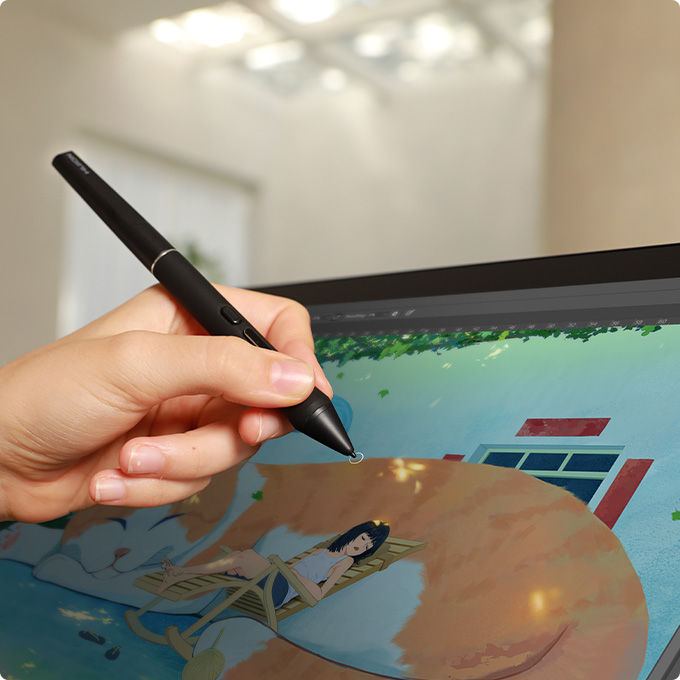

0.35 mm retraction distance
From Pen Nib to Screen.
PenTech 4.0 optimizes the retraction distance[9] from the predecessor with no more than 0.35mm to make the pen tip more stable and solid. You can choose the standard or felt pen nibs[10] (to increase friction) to your liking.
*The felt nib requires additional purchase.
Natural and Sensitive Strokes.
PenTech 4.0 divides pen pressure into 16,384 levels, allowing artists to apply varying amounts of force to achieve different line widths and shading, making drawing and writing more natural.
Additionally, ±60° tilt support helps imitate effects like shading or broad strokes when the pen is tilted, like a real brush or pen.
  • 16384 Levels
    of Pressure Sensitivity
  • ±60°
    Tilt Support[11][12]
From Feather-light to Bold Strokes.
  • 2g - 200g
    As digital art continues to evolve, artists' demands for pen pressure are different. PenTech 4.0 features a 2g initial activation force, precisely detecting even a light touch, allowing artists to create more delicate lines.
    It also offers an adjustable maximum force range from 200g to 500g, which artists can adjust through the driver, making the coloring and shading process more effortless.
  • 2g - 500g
    2g
    Initial Activation Force [13]
    200g-500g
    Adjustable Maximum Force [14]

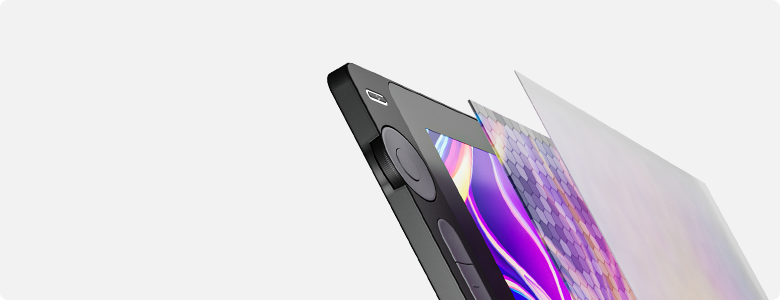

The Toughest Glass,
For the Best Canvas.

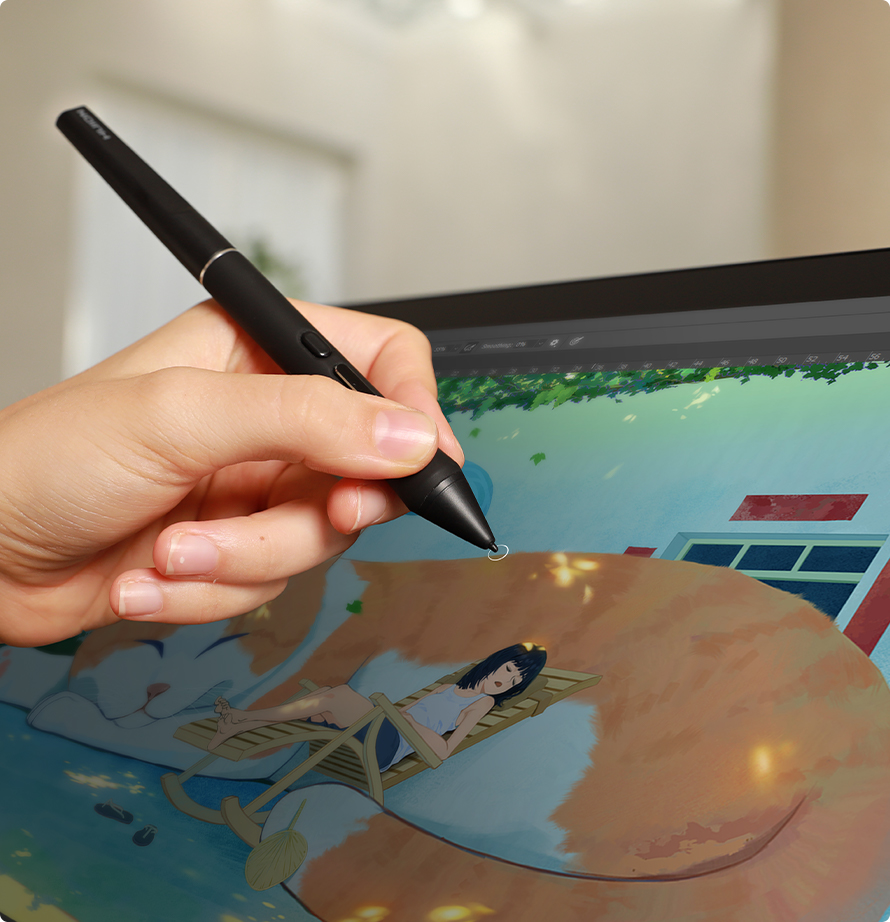

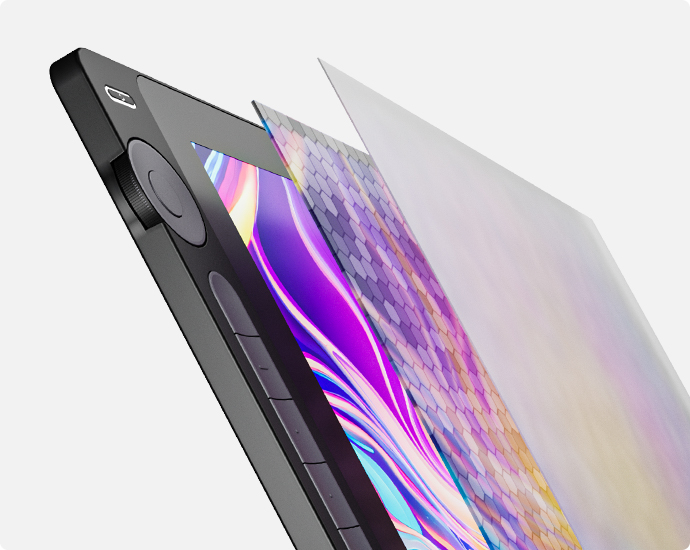

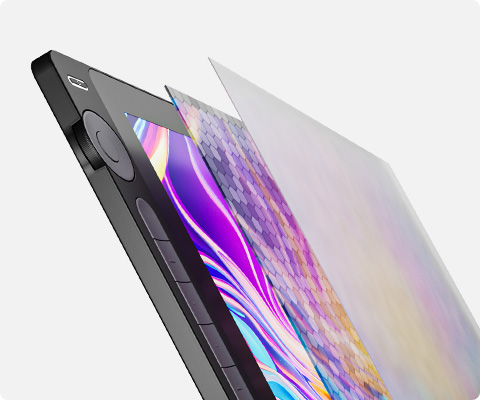

Canvas Glass adopts anti-glare processing on the surface and optimizes anti-sparkle properties to effectively combat strong light interference while minimizing graininess on solid-color backgrounds. Additionally, it provides a paper-like texture for a real drawing feel. It is fully laminated[15] with OC adhesive, ensuring excellent display performance.
  1. Anti-Glare
  2. Anti-Sparkle
  3. Full-Lamination
  4. Textured-Surface

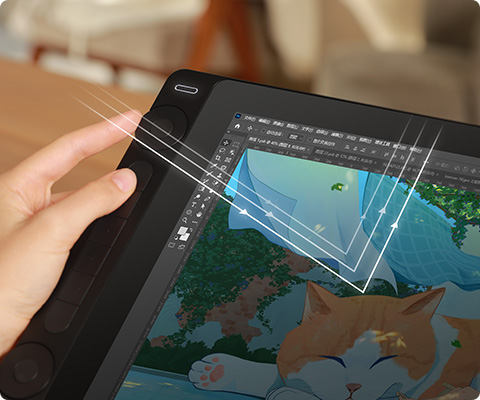

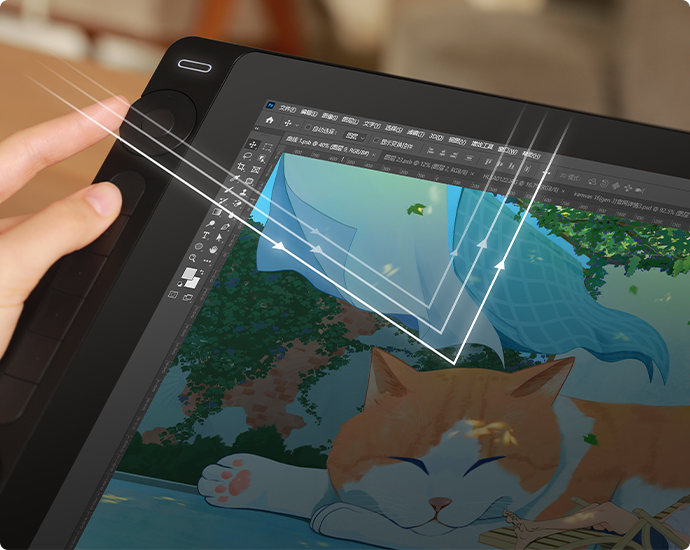

  • It reduces reflections, making viewing the screen even in bright lighting without eye strain.

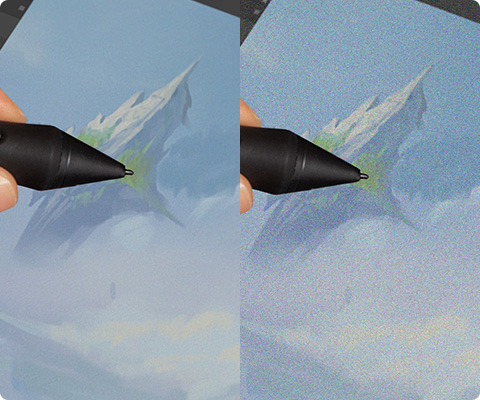

  • It minimizes the "grainy" effect, providing a more comfortable display experience.
    Anti-Sparkle
    With Sparkle
  • It enhances color clarity for a more immersive user experience.

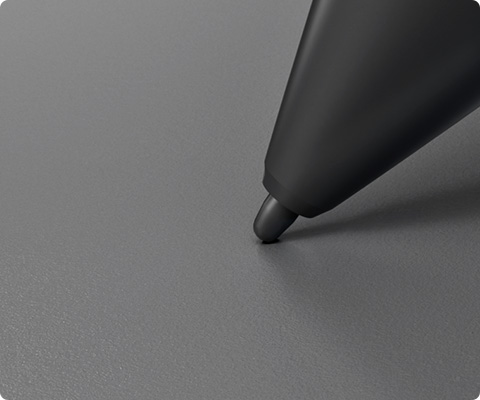

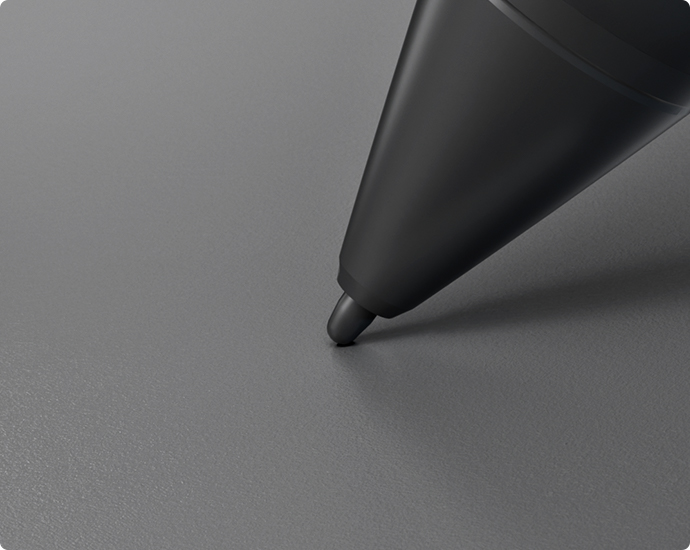

  • It provides a more natural and comfortable drawing experience, like drawing on paper.

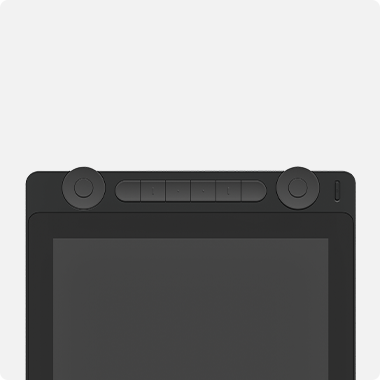

Dual Dials,
Double Productivity.
Kamvas 16 (Gen 3) features 2 dial controllers and 6 silent press keys, which can be customized for various functions in different creative software.
Each dial controller can be set with multiple function pairs, simply switched by the key in the middle of the dial, such as adjusting the canvas, brushes, sliders, flow, opacity, frames, and parameter sliders. This greatly enhances your productivity and creativity.
Discover More Shortcuts >
  • 2 Dial Controllers
    for more presets
  • 6 Press Keys
    with silent design

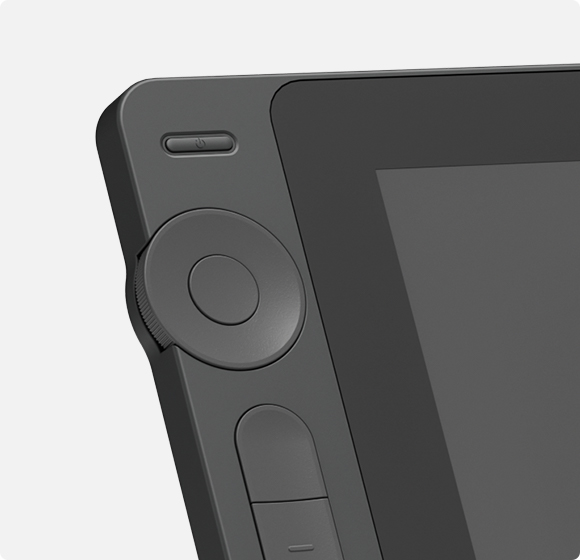

Little Protrusion, Easy Rotate.
The dial controller protrudes slightly about 2mm from the edge of the screen, allowing you to rotate it easily when creating. This design provides better control over rotation and enables precise adjustments to brush settings, canvas, frames, and other functions.
Good for Lefties, too.

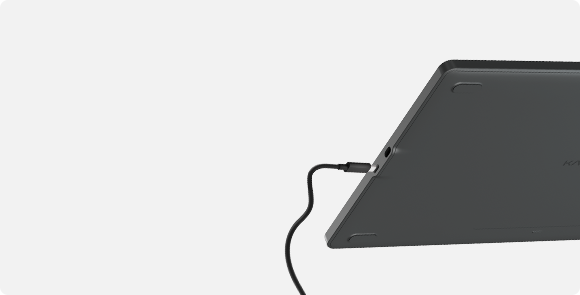

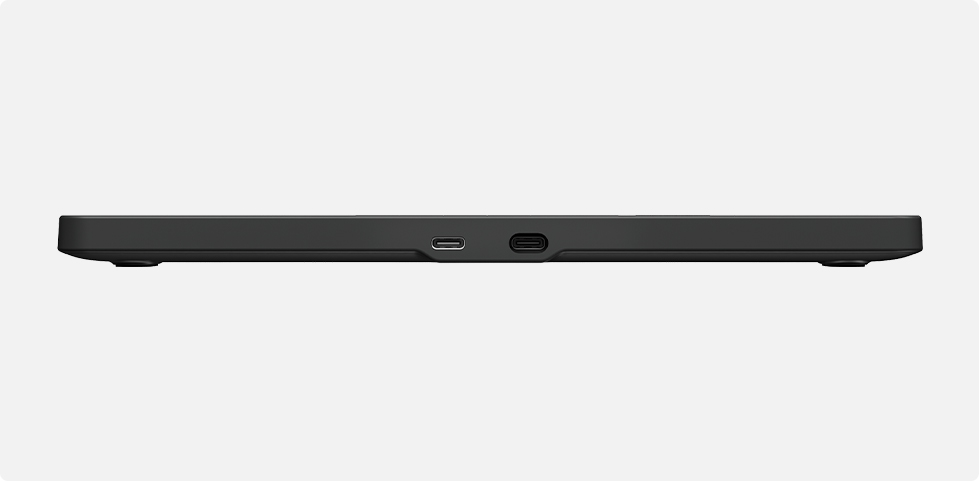

Stable Cable Connection.
3-in-1 Port
Full-Featured USB-C[16] Port
Kamvas 16 (Gen 3) retains the convenient dual-interface design. We have optimized the connection stability to prevent disconnections. Also, you can use your own full-featured USB-C cable to connect the display to your PC, laptop, or Android phone.
  • 3-in-1 Cable
  • Full-Featured USB-C Cable

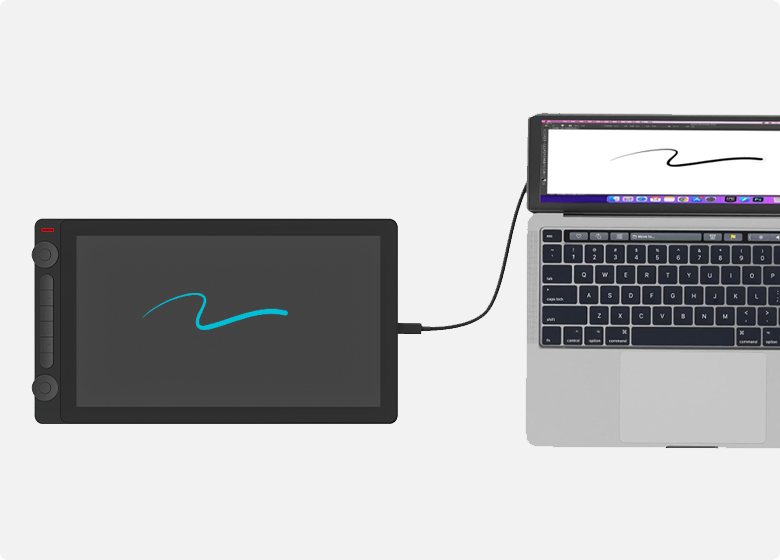

Be A Pen Display,
As A Pen Tablet.
  • Pen Display Mode
    What you see is what you get, easy for beginners.
  • Pen Tablet Mode[17]
    Good for long-time creation.

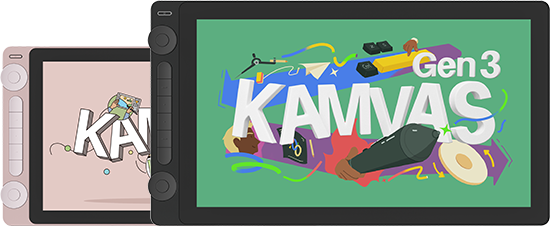

Why is it named (Gen 3)?
Read More >
Compatible Operating System.
  • Windows
    (Windows 10 and above)
  • macOS
    (macOS 10.12 and above)
  • Android
    (Android device interface should meet USB 3.1 + DP 1.2 and above)
  • LinuxOS
    (Ubuntu 20.04 LTS)
Recommended Software.
Kamvas 16 (Gen 3) supports a variety of mainstream software on the market. You can customize shortcuts, pressure sensitivity, and working area settings through the driver to enhance your experience.
···
Optional Effective Accessories.
  • Foldable Stand
    Foldable and portable
    Multiple angle adjustment
    Shop Now >>

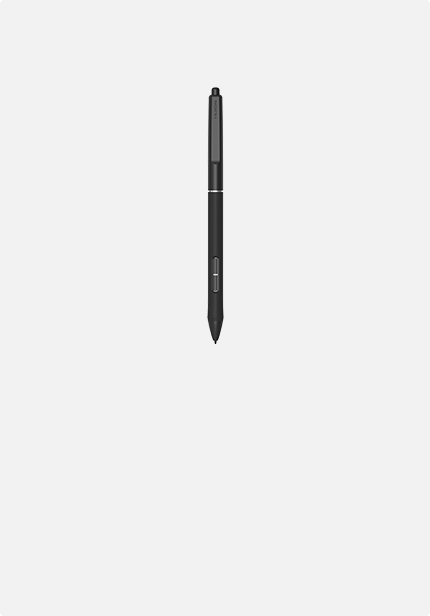

  • Slim Pen PW600S
    φ9.5mm slim body
    More like a pencil
    Shop Now >>

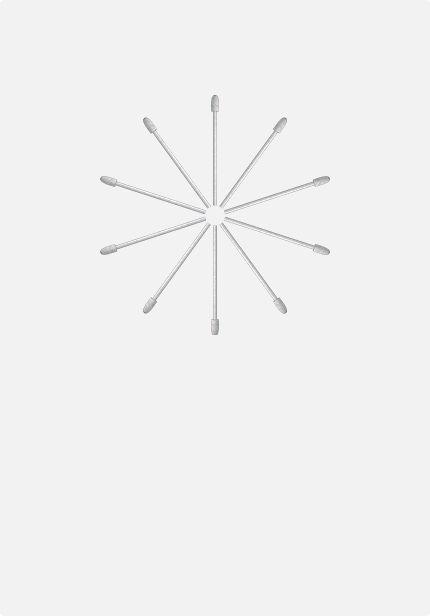

  • Felt Nibs
    More friction
    More paper-like feel
    Shop Now >>
Compare Kamvas Display.
Model Comparison >>
  1. [1] The screen size is measured diagonally, and Kamvas 16 (Gen 3) features a full rectangle 15.8-inch screen.
  2. [2] Based on internal testing by Huion's laboratory, the Color Space Coverage values have been experimentally calibrated.
  3. [3] The touch-based OSD menu can be accessed by long-pressing the power button for 3 seconds. Adjustments can be made using the digital pen. You can change the color space from the menu. For specific instructions, please refer to this link.
  4. [4] This Factory Calibration Report covers ΔE value, color space, and gamma value.
  5. [5] PenTech 4.0 utilizes Electron Magnetic Resonance (EMR) technology, sensing without the need for batteries.
  6. [6] The screen's edge, referring to the 10mm from the outer edges to the center of the screen, has been optimized for accuracy to within ±1mm.
  7. [7] Tilt Auto-Alignment technology, as tested in Huion's internal research lab, achieves an accuracy of ±0.2mm when the pen is used at a 30-degree angle to the screen. To learn more information about tilt auto-alignment, please refer to this article.
  8. [8] The pen head diameter has been optimized to φ 3.6 mm, while the pen nib head diameter has been optimized to 1.5 mm.
  9. [9] Based on internal testing by Huion's laboratory, the Retraction Distance of the pen nib, from a natural state to fully compressed onto the screen, is 0.35mm.
  10. [10] The felt nib requires additional purchase.
  11. [11] A 60-degree angle refers to the angle from the pen being vertical to tilted.
  12. [12] Tilt support is only available in partial software. Please confirm whether the software you are using supports this feature before use.
  13. [13] The data is based on testing conducted in an ideal environment at Huion's internal laboratory.
  14. [14] The data is based on testing conducted in an ideal environment at Huion's internal laboratory. It can be adjusted in multiple levels between 200g to 500g.
  15. [15] Full lamination refers to adhering the liquid crystal layer, touch layer, and cover glass together using Optically Clear Adhesive (OCA).
  16. [16] When connecting through this interface, it is essential to ensure that the interface of your connected device complies with both USB 3.1 GEN 1 and DP 1.2 standards.
  17. [17] If you'd like to use the pen tablet mode, please refer to this link.

Kamvas 16 (Gen 3)

Model

  • GS1563

Appearance

  • Color： Black
  • Dimension： 421.2 x 236.81 x 12.62mm
  • Working Area： 350 x 197mm (15.8”)
  • Net Weight： 1.245kg
  • Touch： -
  • Stand： ST300 (Optional)
  • Video Interface： 3-in-1 USB-C Port, Full-Featured USB-C Port

Screen

  • Resolution： 2560 x 1440(16:9) QHD
  • LCD Type： IPS
  • AG Glass： 2nd Gen Low Sparkle Anti-glare Etched Glass
  • Full Lamination： YES
  • Contrast Ratio： 1000:1
  • Brightness： 220cd/m2
  • Response Time： 14ms
  • Viewing Angle： 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
  • Color Gamut Volume： 120% sRGB
  • Display Color： 16.7M(8bit)

Technical Specifications

  • Digital Pen： PW600L (PenTech 4.0)
  • Pen Technology： Battery-Free Electromagnetic Resonance
  • Pen Resolution： 5080 LPI
  • Pressure Sensitivity： 16384Levels
  • Tilt Support： ±60°
  • Sensing Height： 10mm
  • Report Rate： ＞260PPS
  • Accuracy： ±0.3mm (Center), ±2mm (Corner)
  • Press Keys： 6 Programmable Press Keys + Dual Dial Controllers + 2 Function-switch Buttons

Operating Conditions

  • Input Voltage： AC 100-240V, 50/60Hz
  • Output Voltage： 5V 3A
  • Power Consumption： ≤7W
  • Standby Consumption：
  • Working Temp. and Humidity： 0-40°C 、 20-80%
  • Storage Temp. and Humidity： -20°C~60°C、 10-90%

OS Compatibility

  • Windows 7 or later
    macOS 10.12 or later
    Android(USB3.1 DP1.2 or later)
    Linux(Ubuntu 20.04 LTS)
