Kamvas Pro 24 (Gen 3)
For the Explorer
Advanced PenTech 4.0
​For artists who demand a natural feel, unerring precision, and intuitive creation.
Master Wide Color Gamut
99% sRGB
99% Adobe RGB
98% DCI-P3
98% Display P3
1 Billion Display Colors
3D LUT Calibration
Ensures Color Accuracy.
23.8” Screen: See Every Detail Clearly.
Nano-Etched Canvas Glass 3.0
Anti-Reflection, Durable, Paper-Like Texture.
Multi-Touch
Efficiency at Your Fingertips.
Accessories
To Meet Your Needs.

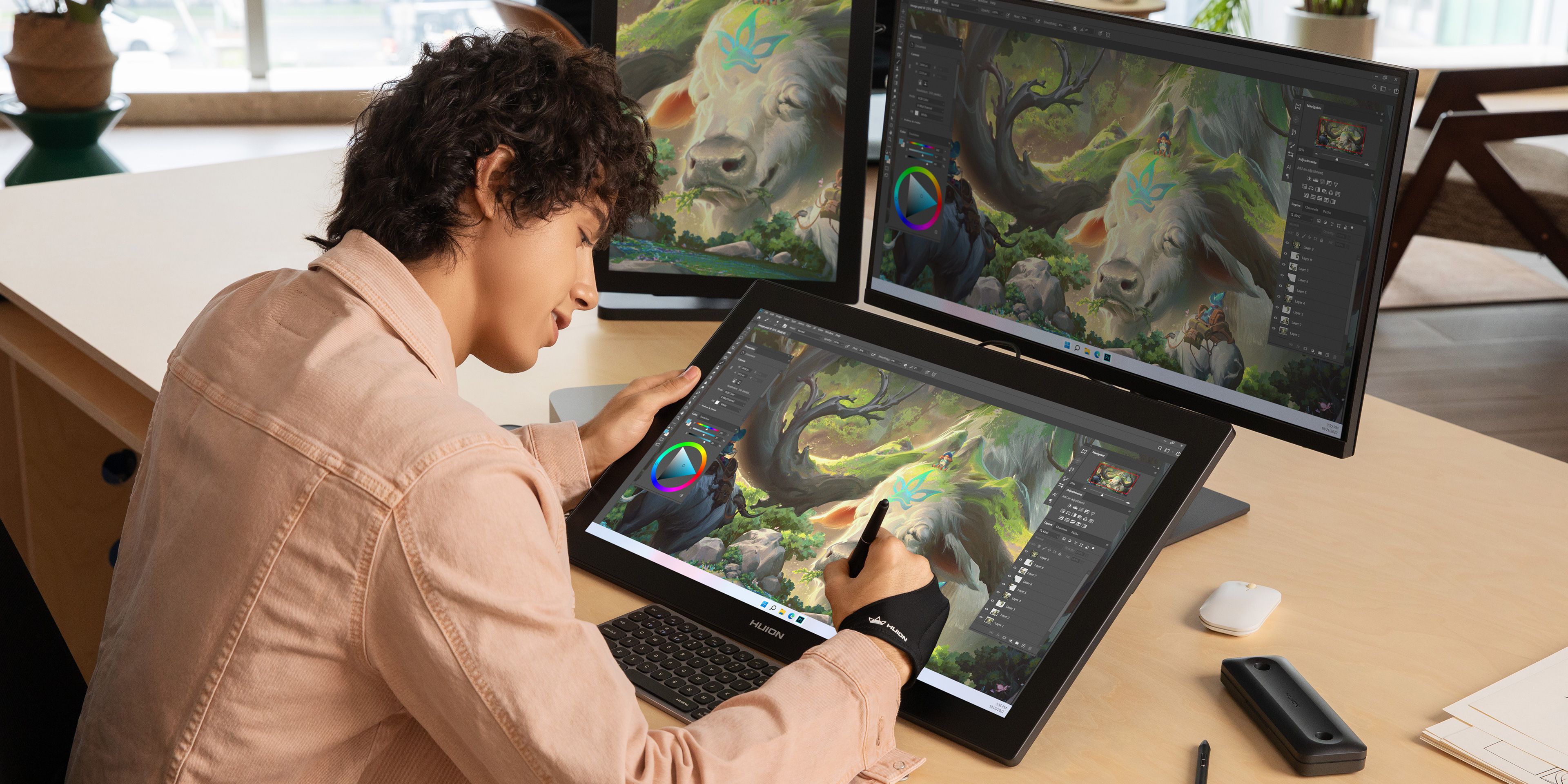

Optimized for Your
Desk Setup

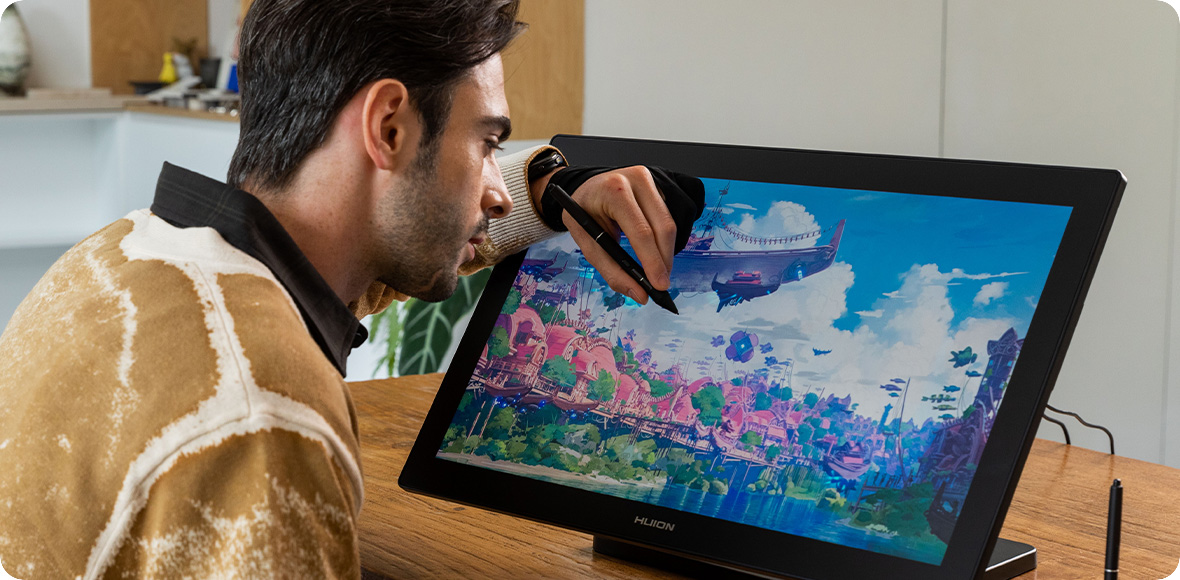

Kamvas Pro 24 (Gen 3) inherits its predecessor's 23.8-inch screen size[1] and narrow bezels, maximizing your workspace while providing a larger canvas for limitless creativity. With 4K UHD resolution, every detail of your work is presented with sharp clarity.
  1. 23.8 inches
    Screen

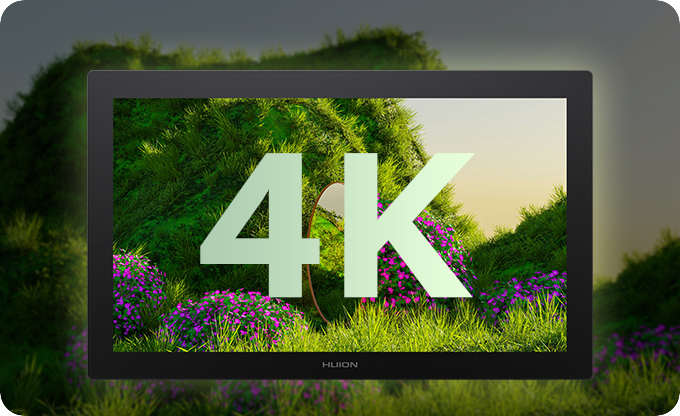

  2. 3840 × 2160
    Resolution
  3. 185 PPI
    Pixel Density
Vivid Colors,
All Under Your Control
Thanks to Quantum Dot technology, this pen display delivers a vibrant color gamut coverage[2], it also comes with 1 billion display colors[3] for an enhanced visual experience.
  • 99% sRGB
    Color Gamut Coverage
  • 99% Adobe RGB
    Color Gamut Coverage
  • 98% DCI-P3
    Color Gamut Coverage
  • 98% Display P3
    Color Gamut Coverage
Easily Switch between 5 Color Modes[4]
  • sRGB
    It's compatible with most mainstream monitors and is widely used in graphic design, web design, illustration, and game design, helping to minimize color inaccuracies.
  • Adobe RGB
    The Adobe RGB color space offers a wider gamut than sRGB, covering the CMYK color space, making it ideal for commercial printing and photo editing.
  • DCI-P3
    It has more vivid red and green tones, with a higher gamma, making it perfect for low-light environments, such as visual effects post-production.
  • Display P3
    Based on DCI-P3, Display P3 adjusts the gamma and white point to match the real-world environment, closely aligning with the color profiles of Apple devices.

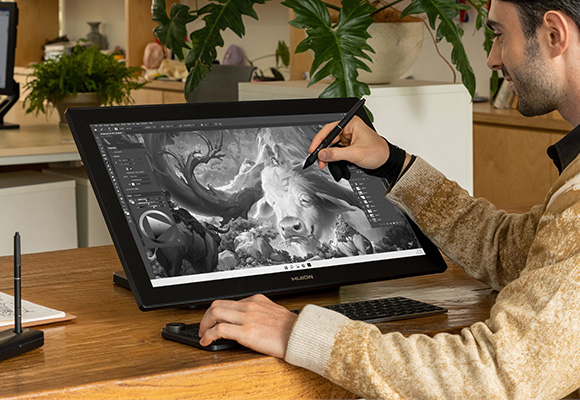

  • Black & White Mode
    You can switch to black & white mode[5] with a single keystroke by setting up a hotkey in the driver settings. This helps you quickly distinguish light and dark contrasts and alleviate eye strain from high-saturation reading.

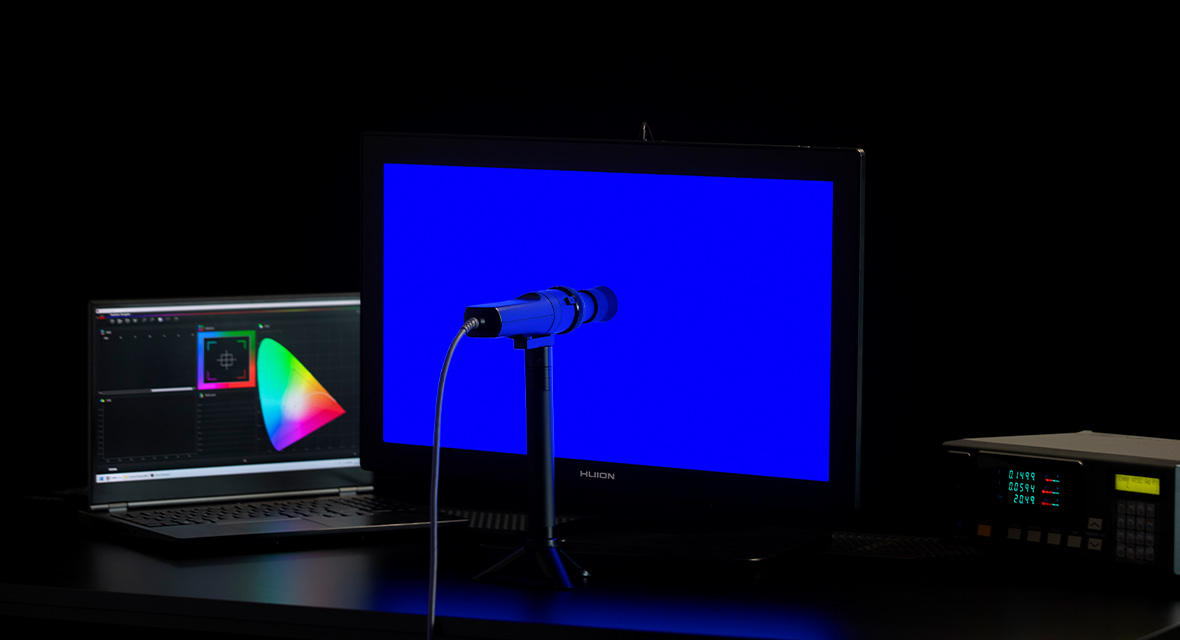

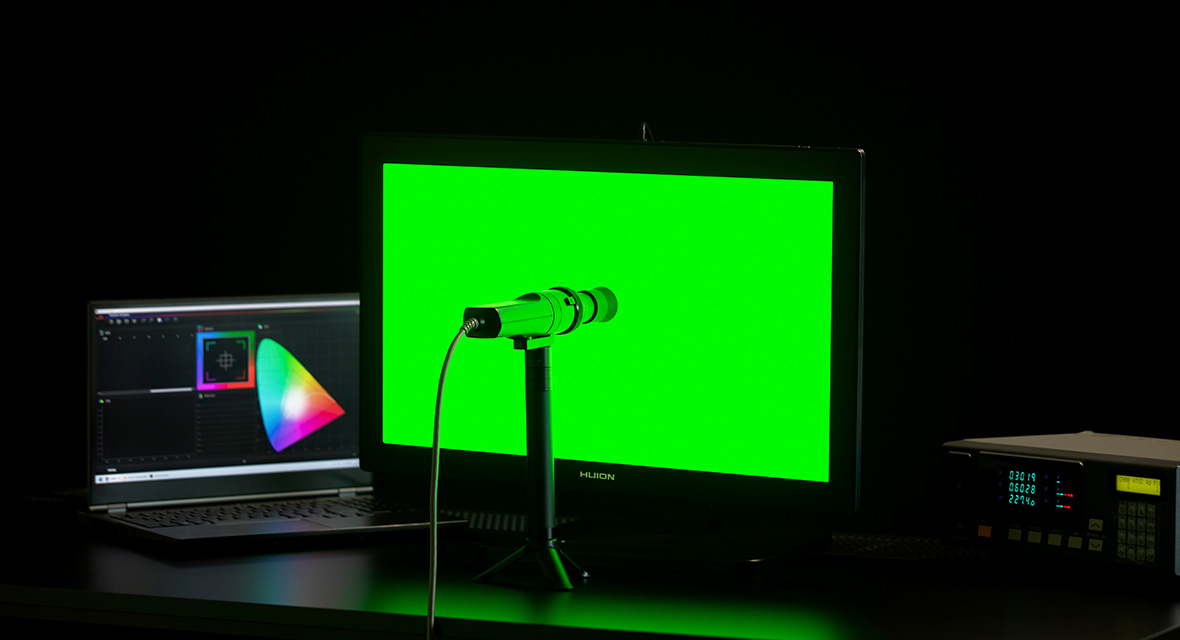

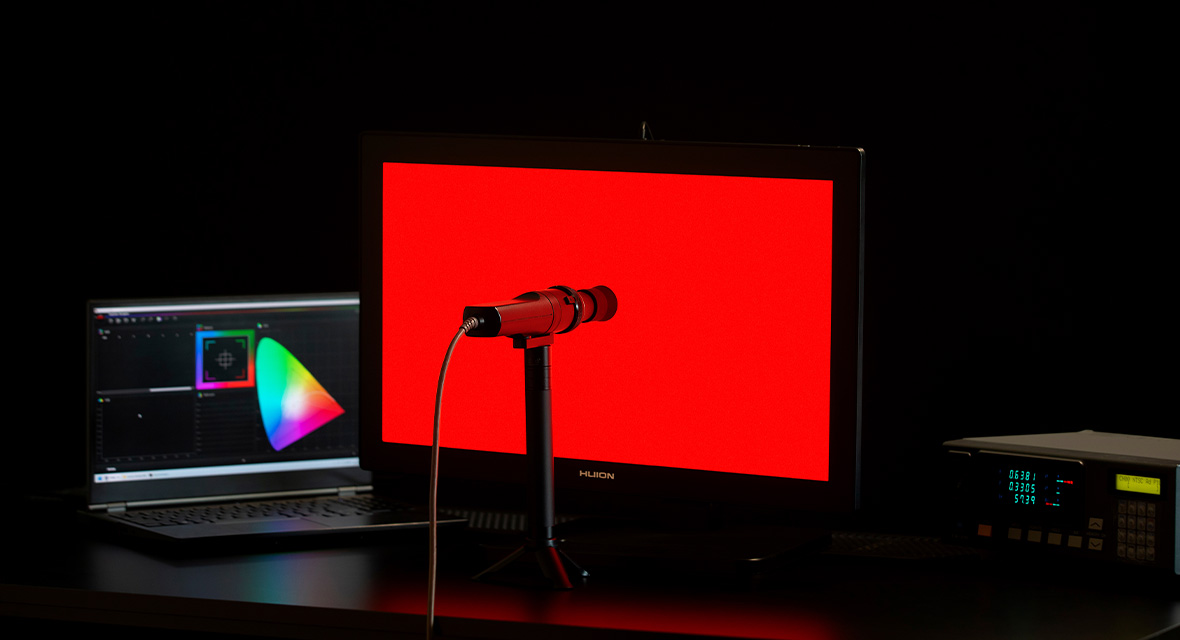

Reliable Color Accuracy
Each Kamvas Pro 24 (Gen 3) undergoes professional hardware color calibration[6] with a 3D LUT, ensuring △E<1[7] and preventing color fading. A factory calibration report is also included, so you can use it with confidence.
PenTech 4.0
Not just an upgrade in technology, but experience.
Pen to Choose, Grip to Express

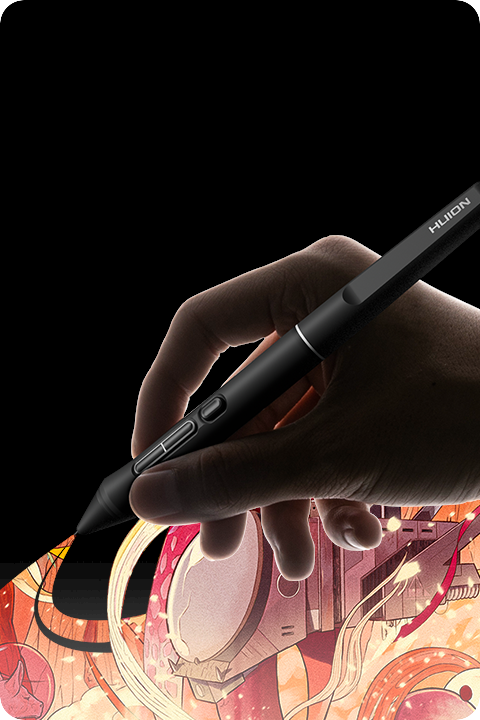

Tailoring to the distinct requirements of artists across diverse industries, Kamvas Pro 24 (Gen 3) offers not one, but two pens: one with a standard grip and another with a sleek, slim form. You can create in perfect harmony with your unique habits and preferences.
The PW600 and PW600S pens are equipped with the HV200 chip, which significantly enhances pen pressure sensitivity and cursor tracking. With side keys, a tail eraser, and a comfortable grip, they provide a realistic pen-like experience while also boosting efficiency.

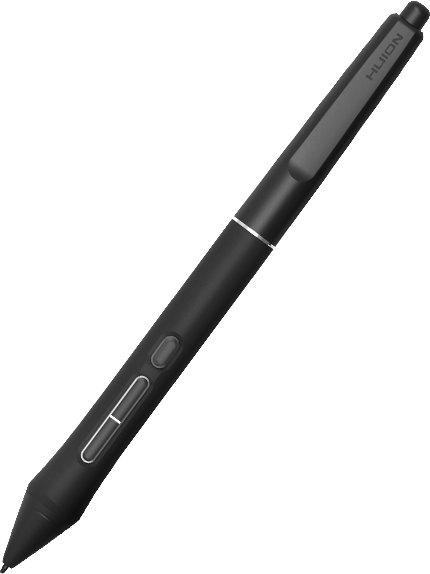

Standard Pen (PW600)[8]
Tail Eraser[9]
Easily erase unwanted marks.
Battery-Free[10]
No need for charging.
Dust-Resistant Silicone Grip
Enhanced comfort during use.
3 Side Keys
Customizable shortcuts, perfect for efficiency, seamless multi-software operation.

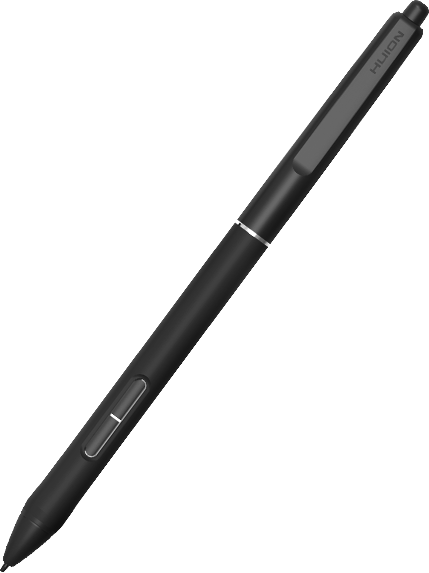

Slim Pen (PW600S)[8]
Tail Eraser
Easily erase unwanted marks.
Battery-Free
No need for charging.
Lightweight
Reduce fatigue during extended use.
2 Side Keys
Customizable shortcuts, for frequent and prolonged use within a software.

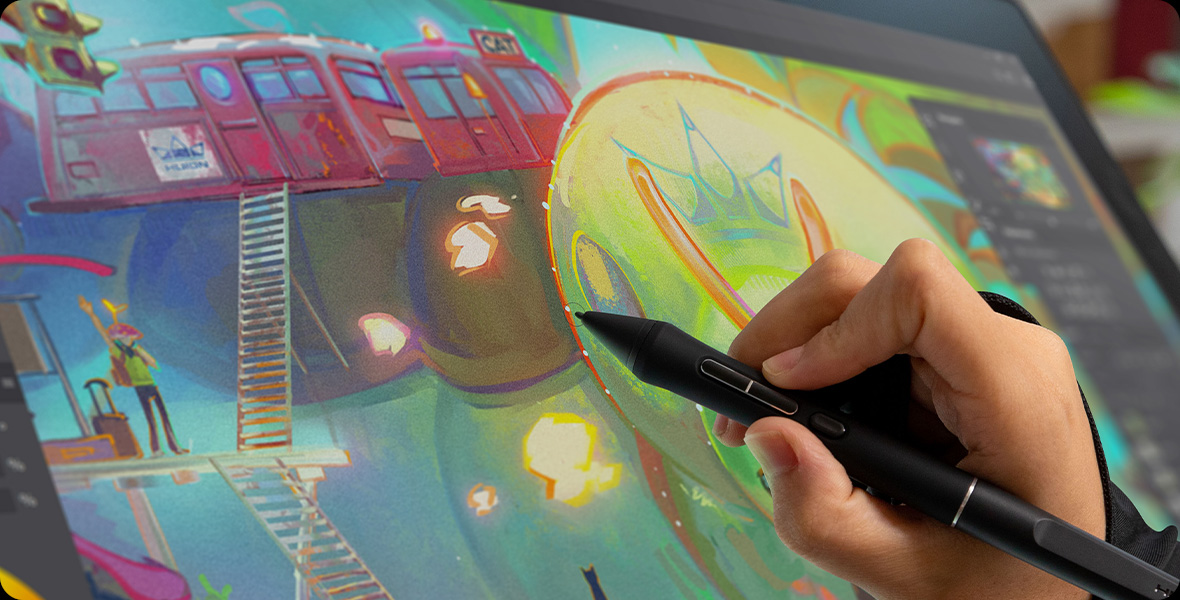

Easily and Accurately.
Ensuring precise pen performance is a top priority for Huion. With revolutionary PenTech 4.0, the edge precision[11] of the screen was enhanced, and tilt auto-alignment[12] decreased the cursor offset issues. Moreover, we've reduced the size of the pen nib[13] to prevent any obstruction of your line of sight that might occur.
From Pen Nib to Screen.

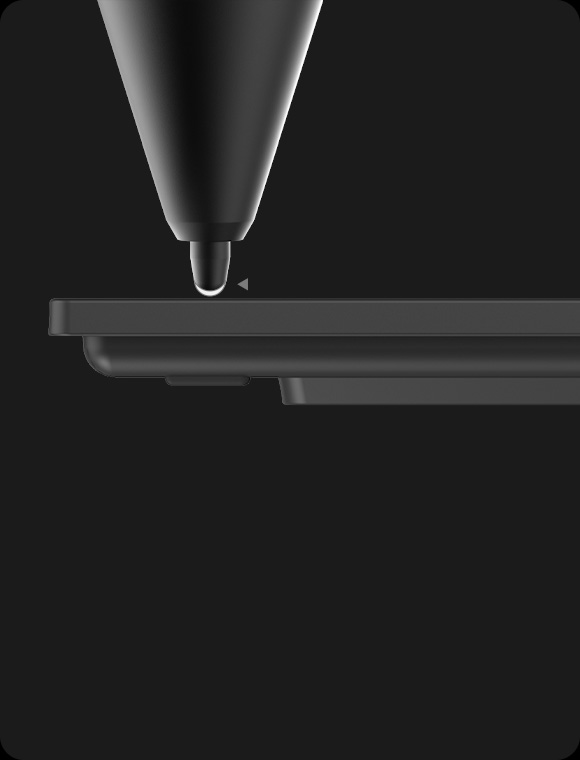

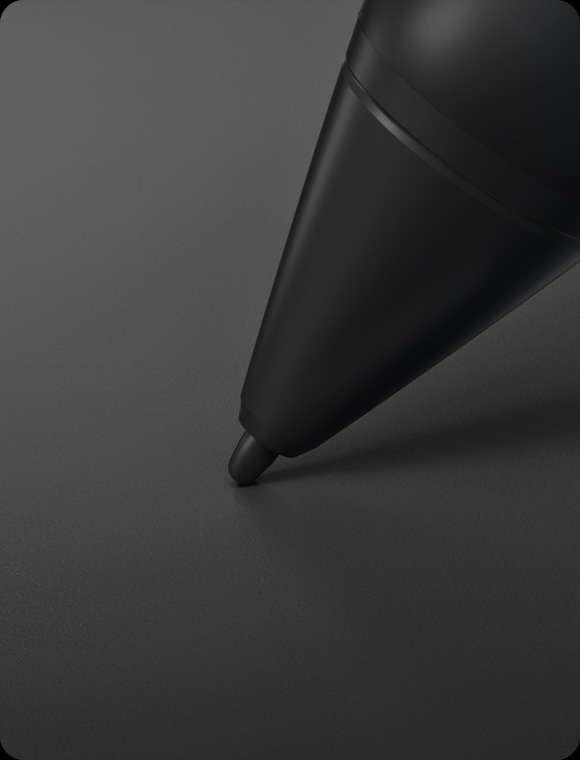

  • 0.35mm Retraction Distance
    PenTech 4.0 optimizes the retraction distance from the predecessor with no more than 0.35mm[14] to make the pen tip more stable and solid. You can choose the standard or felt pen nibs[15] (to increase friction) to your liking.
    *The felt nib requires additional purchase.
  • Also, the paper-like textured screen delivers a natural pen-on-paper experience, making drawing truly enjoyable.

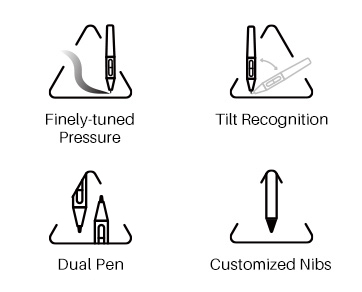

Natural and Sensitive Strokes.
PenTech 4.0 divides pen pressure into 16,384 levels, allowing artists to apply varying amounts of force to achieve different line widths and shading, making drawing and writing more natural.
Additionally, ±60° tilt support helps imitate effects like shading or broad strokes when the pen is tilted, like a real brush or pen.
  • 16,384 Levels
    Pressure Sensitivity
  • ±60°
    Tilt Support [16][17]

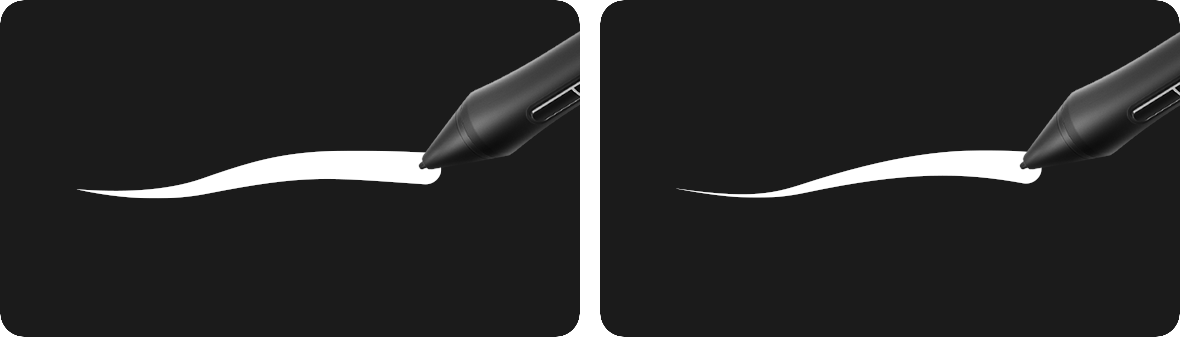

From Feather-light to Bold Strokes.
As digital art continues to evolve, artists' demands for pen pressure are different. PenTech 4.0 features a 2g initial activation force[18], precisely detecting even a light touch, allowing artists to create more delicate lines.
It also offers an adjustable maximum force range from 200g to 500g[19], which artists can adjust through the driver, making the coloring and shading process more effortless.
2g - 200g
2g - 500g
Turn Canvas Glass 3.0
into a Canvas

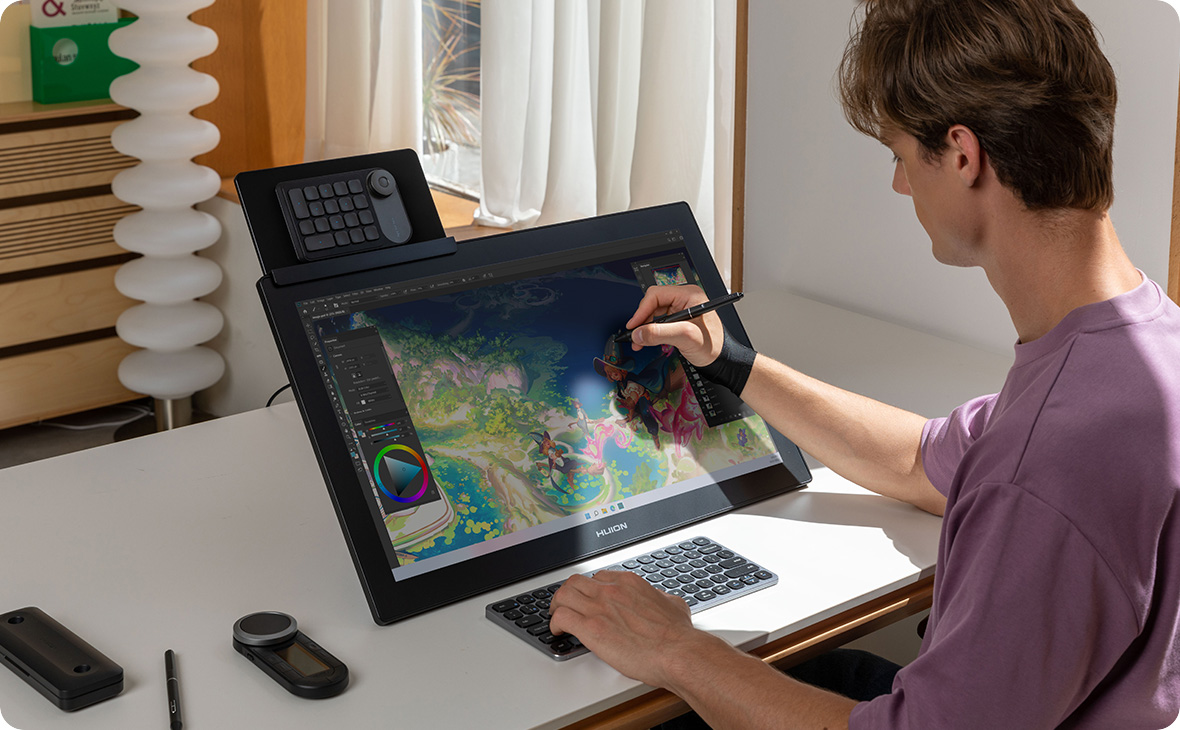

Reduced Reflections
Coated with the all-new nano-etched technology[20], Canvas Glass 3.0 not only reduces glare in bright light but also minimizes graininess on solid backgrounds, enhancing display clarity by 14%[21]. Additionally, an anti-fingerprint coating is applied to prevent fingerprints and keep the display clean.
Enhanced Performance
The hardness of the surface glass exceeds that of the pen nib, preventing damage[22] from scratches and ensuring long-lasting durability.

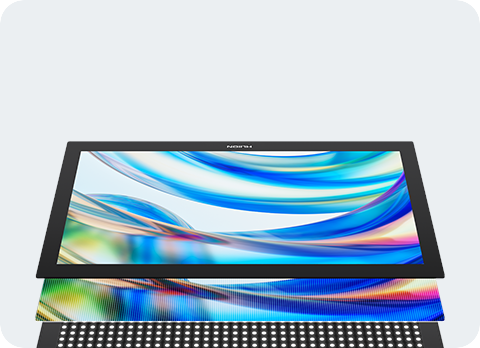

The LCD panel is fully laminated[23] with glass, enhancing brightness and color accuracy while extending its lifespan.

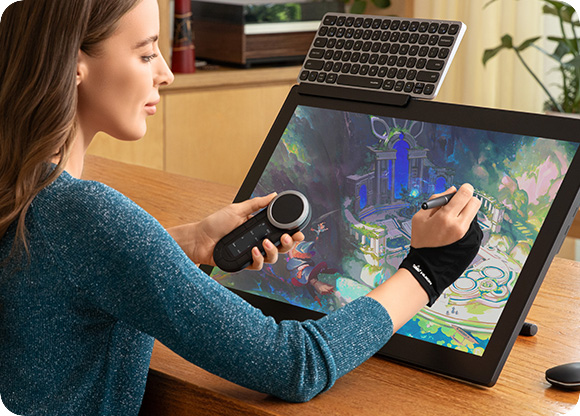

Touch and Press, It's Your Call.
Maximizing workspace can be quite a challenge for artists. The independent keyboard and screen minimize the screen's footprint on your desk while offering a variety of convenient shortcuts.

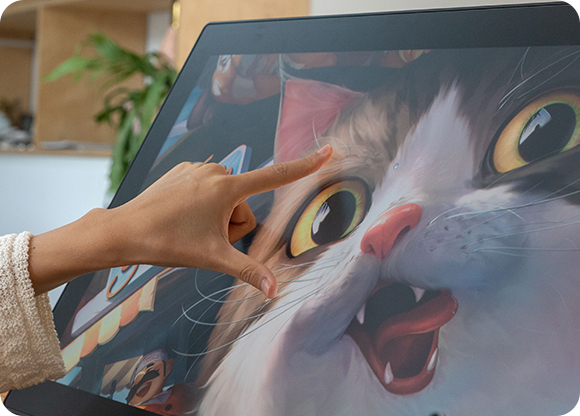

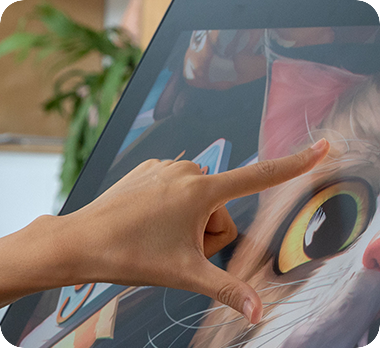

Touch:
The intuitive interaction of multi-touch allows you to use gestures like swipe and rotate, enhancing your overall user experience by making navigation and interaction more fluid.
Press:
You also have the flexibility to choose between a one-handed keyboard or a Bluetooth keyboard[24] to make quick and precise text input on the table extension[25].
*The full keyboard and the keyboard holder are sold separately.
Ergonomic Design,
All for Your Smooth Workflow.

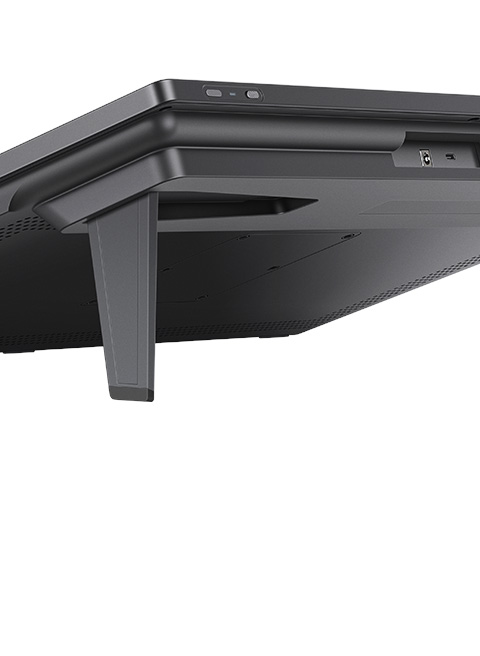

  • Versatile Stand Options
    With built-in 20° angle support and 100*100 VESA mount[26] compatibility.

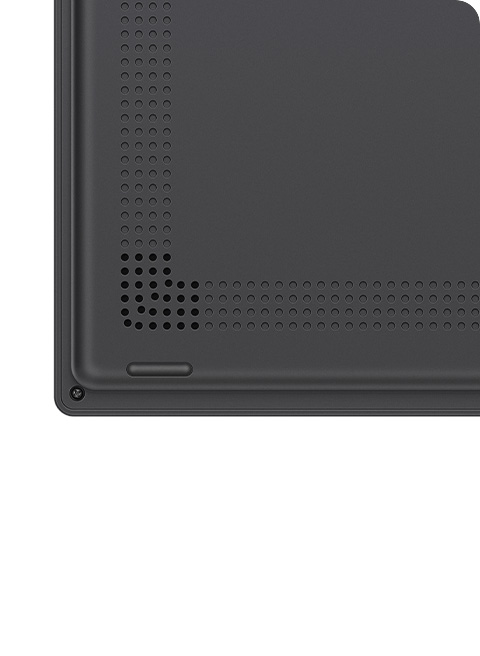

  • Heat Dissipation Holes
    Four heat dissipation holes at the back effectively reduce temperature, ensuring stable operation during extended work sessions.

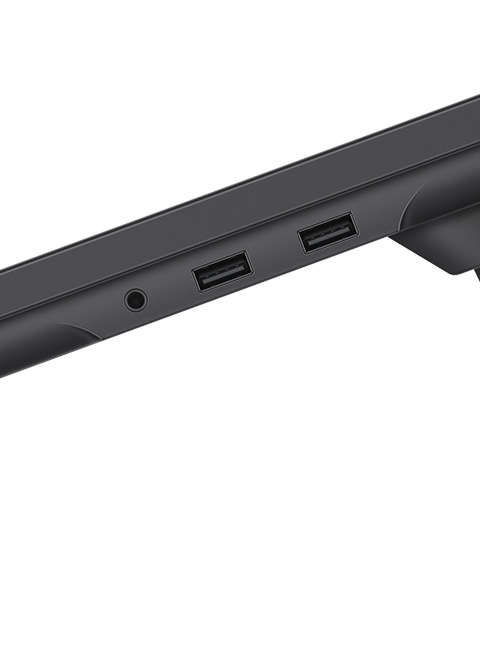

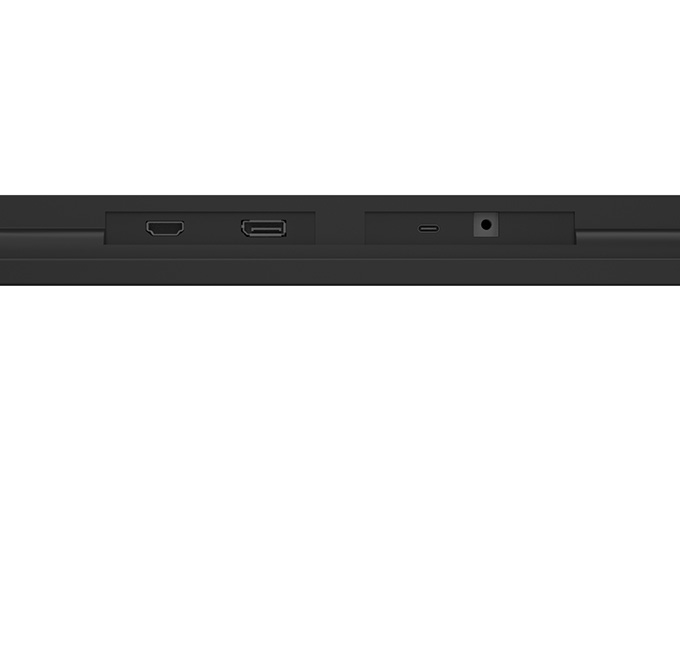

  • Top-Mounted Ports
    Tailored for desktop use and neater cable routing. Offering both classic and full-featured USB-C options.
  • Expanded Interfaces
    For added convenience in connectivity.

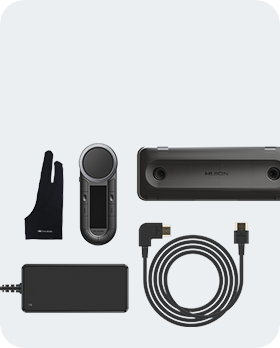

Standard Included & Optional Accessories.

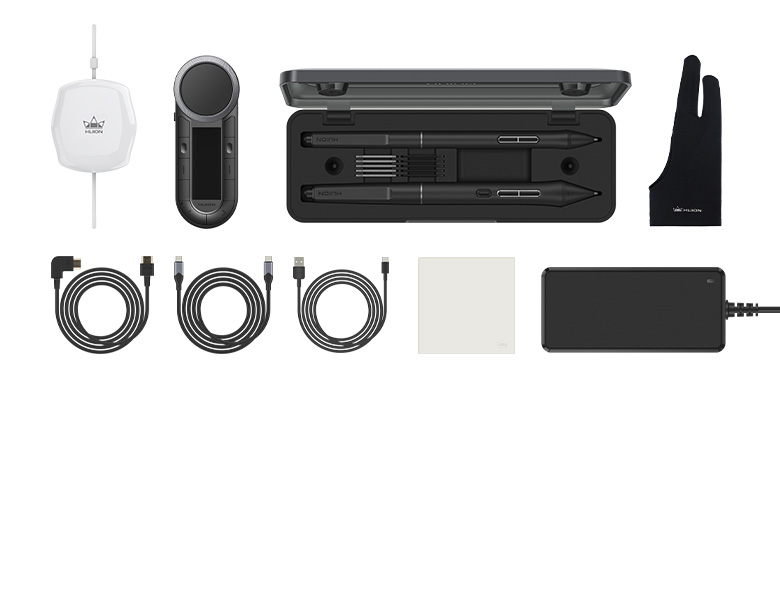

  • Contents of the Box
    Pen Display, Digital Pen, K40, HDMI Cable, USB-C to USB-C cable, USB-A to USB-C cable, Power Adapter, AC Adapter, AC Cable, Pen Box PB03, Standard Nib x 5, Felt Nib x 5, Anti-Touch Glove GL03A, Cleaning Cloth, Quick Start Guide, G1 Colorimeter (Limited edition gift).

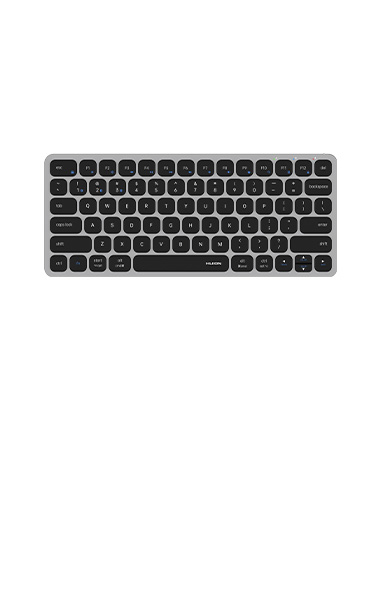

  • Huion Keyboard
    75% Keyboard with scissor switch keys.
    Shop Now >>

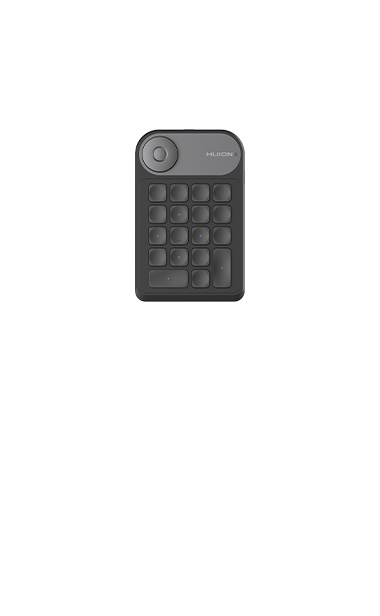

  • Huion Keydial mini
    Numpad-like device with 18 customized keys and 1 dial controller.
    Shop Now >>

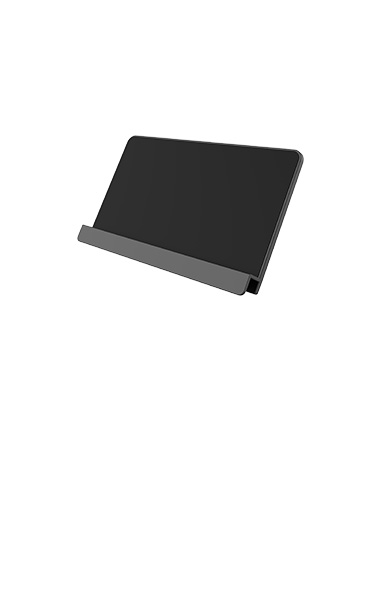

  • Keyboard Holder
    Holds keyboard and mobile devices, saving your workspace.
    Shop Now >>

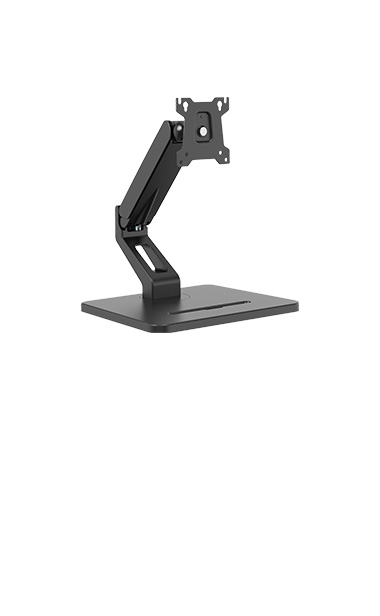

  • Adjustable VESA Stand
    VESA mount support, adjustable angle from 20° - 80°.
    Shop Now >>
  • Desktop Arm
    Adjust to the optimal angle for creation or the perfect angle for viewing.
    Shop Now >>
Compatible Operating System.
  • Windows
    (Windows 10 and above)
  • macOS
    (macOS 10.12 and above)
  • Android
    (Android device interface should meet USB 3.1 + DP 1.2 and above)
  • LinuxOS
    (Ubuntu 20.04 LTS)
Recommended Software.
Kamvas Pro 24 (Gen 3) supports a variety of mainstream software on the market. You can customize shortcuts, pressure sensitivity, and working area settings through the driver to enhance your experience.

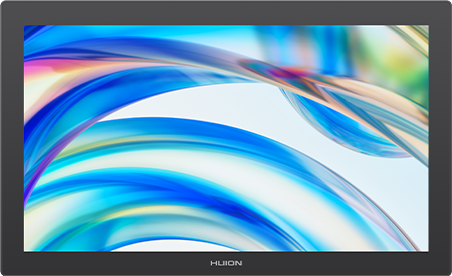

Compare Kamvas Display.
Model Comparison >>
  1. [1] The screen size is measured diagonally, and Kamvas Pro 24 (Gen 3) features a full rectangle 23.8-inch screen.
  2. [2] Based on internal testing by Huion's laboratory, the Color Space Coverage values have been experimentally calibrated.
  3. [3] Utilizing Frame Rate Control technology, the screen achieves 1.07 billion display colors.
  4. [4] The touch-based OSD menu can be accessed by long-pressing the power button for 3 seconds. Adjustments can be made using the digital pen. You can change the color space from the menu. For specific instructions, please refer to this link.
  5. [5] Due to the specific Gamma value definition in standard color spaces, Gamma adjustment is only supported in Native and Black & White modes.
  6. [6] Hardware calibration involves writing calibration data directly into the hardware, reducing the likelihood of color deviation.
  7. [7] This Factory Calibration Report covers ΔE value, color space and gamma value.
  8. [8] The PW600 has a diameter of φ 11.8 mm, while the PW600S has a diameter of φ 9.5 mm.
  9. [9] You can set and change the eraser function of the pen within the driver.
  10. [10] PenTech 4.0 utilizes Electron Magnetic Resonance (EMR) technology, sensing without the need for batteries.
  11. [11] The screen's edge, referring to the 10mm from the outer edges to the center of the screen, has been optimized for accuracy to within ±1mm.
  12. [12] Cursor Auto-Alignment technology, based on internal testing by Huion's laboratory, achieves an accuracy of ±0.2mm when the pen is used at a 30-degree angle to the screen.
  13. [13] Based on internal testing by Huion's laboratory, the Retraction Distance of the pen tip, from a natural state to fully compressed onto the screen, is 0.35mm.
  14. [14] The package includes 5 standard pen nibs and 5 felt pen nibs.
  15. [15] A 60-degree angle refers to the angle from the pen being vertical to tilted.
  16. [16] Tilt support is only available in the partial software. Please confirm whether the software you are using supports this feature before use.
  17. [17] The pen head diameter has been optimized to φ 3.6 mm, while the pen nib head diameter has been optimized to φ 1.5 mm.
  18. [18] The data is based on testing conducted in an ideal environment at Huion's internal laboratory.
  19. [19] The data is based on testing conducted in an ideal environment at Huion's internal laboratory. It can be adjusted in multiple levels between 200g and 500g.
  20. [20] Nanometre Etching Technology creates micro-irregularities on the glass surface, reducing glare reflections and also increasing friction when drawing.
  21. [21] The data is based on testing conducted in an ideal environment at Huion's internal laboratory.
  22. [22] The glass has a hardness of 7H, and the pen tip has a hardness of 5H, eliminating the need for protective films, and the surface glass is scratch-resistant.
  23. [23] Full lamination refers to adhering the liquid crystal layer, touch layer, and cover glass together using Optically Clear Adhesive (OCA).
  24. [24] The one-handed keyboard is included with the product, while the Bluetooth keyboard is available for a separate purchase.
  25. [25] The table extension is secured with screws, supporting the placement of full keyboards, one-handed keyboards, tablets, and smartphones.
  26. [26] The mount is compliant with VESA specifications; you need to purchase it separately if you need a VESA stand.
