Press Key

You can customize the functions of these buttons according to your own habits, and you can uncheck "Enable press keys" in the lower left corner to turn off the button function.
Place the cursor on a key to check its default value. Click the key for a pop-up dialog box and then set the function.
You can enter a name for the keystroke, then select the property of the keystroke and customize the function.

Note: The pictures in the User Manual are for reference only.


1. Keyboard Key

Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on.

2. Mouse Key

Select the function of a Mouse or Wheel. Please see the picture below for detailed functions.
Mouse: Left Button, Right Button, Middle Button.
Wheel: Wheel Forward, Wheel Backward.
Double-Left Click.

3. Switch

Select Switch Screen or Switch Brush.
Note: Some software does not support the "Switch Brush" function.

4. Run Program

Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press.

5. System Application

The table below are the functions of Windows and Mac Systems that can be customized on the Keys.

6. Multimedia

To realize the functions such as previous song, next song, play/pause, volume up, volume down.

7. None

When select None, the keys will have no function.

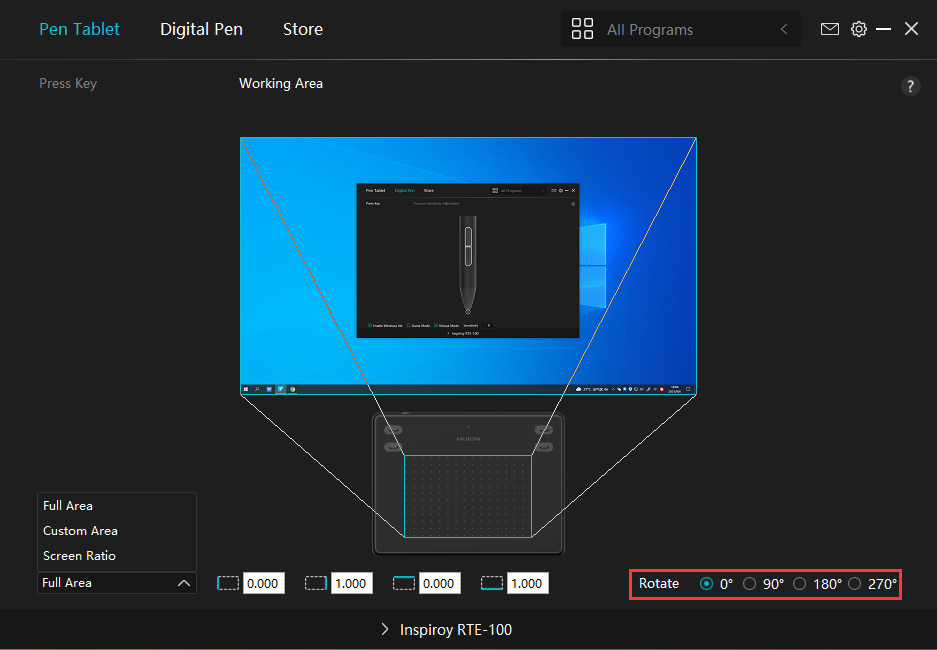

Working Area

1. Working Area Setting

Define the tablet area that will be mapped to the screen area.
[1] Full Area: the entire active area of the tablet. This is the default setting.
[2] Screen Ratio:The display ratio is the same as that of the connected device. As a general rule, be 16:9.
[3] Customized Area:
1> Enter coordinate values.
2> Drag the corners of the foreground graphic to select the screen area.

2. Rotate Working Area

By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°.
