Inspiroy Keydial
Pen Tablet Setting

Press Key

You can customize the functions of these press keys according to your own habits, and you can uncheck "Enable press keys" in the lower left corner to turn off these functions.

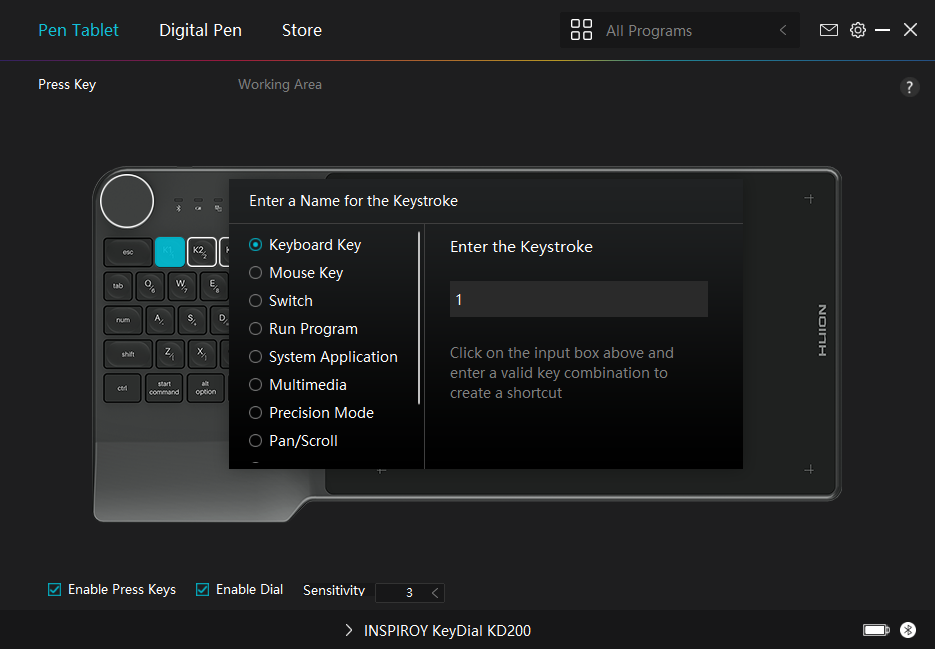

Place the cursor over one of the buttons on the screen of your computer to check its default value. Click a button and then a pop-up dialog box appears. Choose what you want and set its function.


Refer to this table of settings below to help you decide if you want to change any settings that are already assigned.
Note: The p
erformance of functions in the table below is up to the device that users have connected.

Keyboard KeyClick on the input box above and enter a valid key combination to create a shortcut.
Mouse KeySelect the functions of a Mouse or Wheel. Please see the picture below for detailed information of these functions. Mouse: Left Button, Right Button, Middle Button, and Double-left Click. Wheel: Wheel Forward and Wheel Backward. Other functions: Ctrl, Alt, Shift, and Win .
SwitchSelect among Switch Screen, Switch Brush, Mouse Mode On/Off, and Game Mode On/Off.
Run ProgramClick Browse and select the program that you want to run quickly. After that, press the key to launch the item.
System ApplicationYou can apply these functions to press keys: Lock the Screen, Sleep, Power Off,
MultimediaYou can apply these functions to press keys: Previous Song, Next Song, Play/Pause,Volume up, Volume down, and Muted.
Precision ModeYou can toggle between normal precision and a precision that you choose, from Fine to Ultra Fine. In the Precision Mode window that appears, move the slider to set the precision that you toggle into. For example, if you assign Precision Mode to a pen button, when you press the pen button, you switch to working in the precision that you selected from the slider. When you press the pen button again, you switch back to working in the normal precision. Press “Esc” to exit Precision Mode.
Pan/ScrollThis function allows you to pan and scroll in a document or item by moving the pen tip up and down or right and left.When you select Pan/Scroll, the Scroll Speed window appears. Move the slider to your preferred scrolling speed.

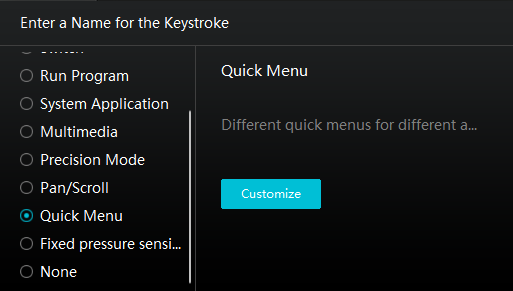

Quick MenuPick it up and you can use the key to pull up the Quick Menu. Detailed information for reference is down below this table.
Fixed Pressure SensitivityYou can lock the pressure at the current level until you release the component. For example, if you assign this setting to a pen button, you can paint with pressure sensitivity enabled in your application until you reach the brush size you like. Then, press and hold the pen button to lock in that brush size as long as you are pressing and holding the button.
NoneWhen select None, the keys will have no function.

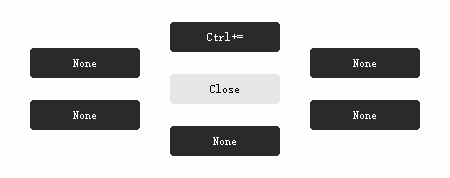

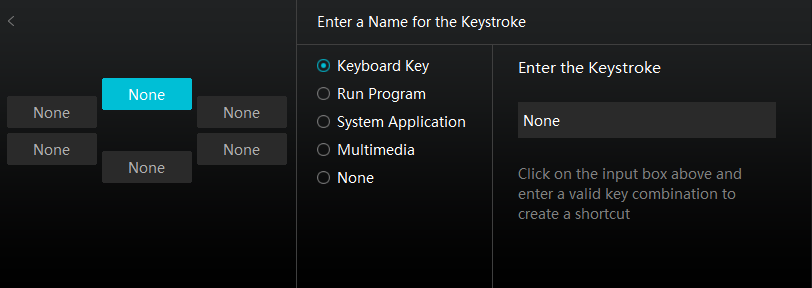

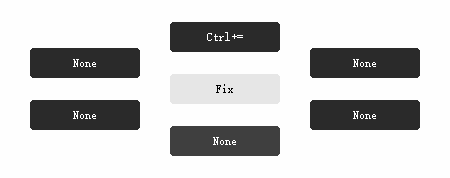

Click Customize in the picture above to pop up a quick menu (see picture 1). For each of the six buttons on the left, users can enter a name for it and set its unique function. After that, users can call up the Quick Menu by pressing the key (see picture 2). The menu disappears after a click on any of the six buttons. By clicking “Fix” once the menu will be fixed on the desktop while after a second try the “Fix” button changes to “Close” and the menu disappears (see picture 3). Put the cursor on the menu to drag it.
                                                                                                   picture 1
                                                                                                    picture 2
                                                                                                    picture 3

Working Area

Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

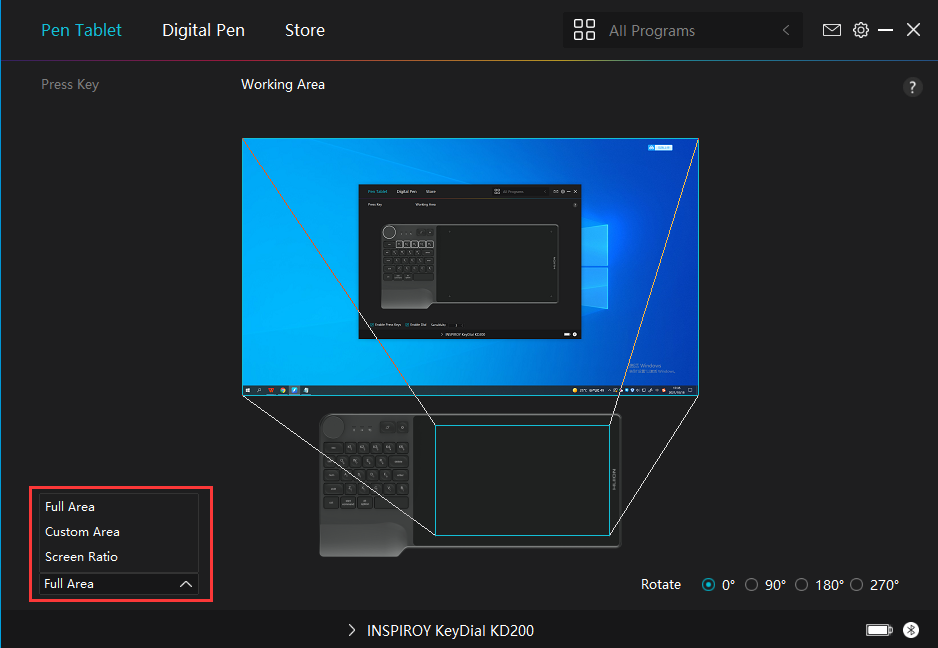

1. Working Area Setting

Define the pen tablet area that will be mapped to the screen. Three modes on the driver can be chosen:

[1] Full Area: The default setting is the entire active area of the pen tablet.

[2] Screen Ratio: The ratio of the active pen tablet area depends on that of the display device, which as a general rule, is 16:9. In Screen Ratio mode, these two ratios keep the same.

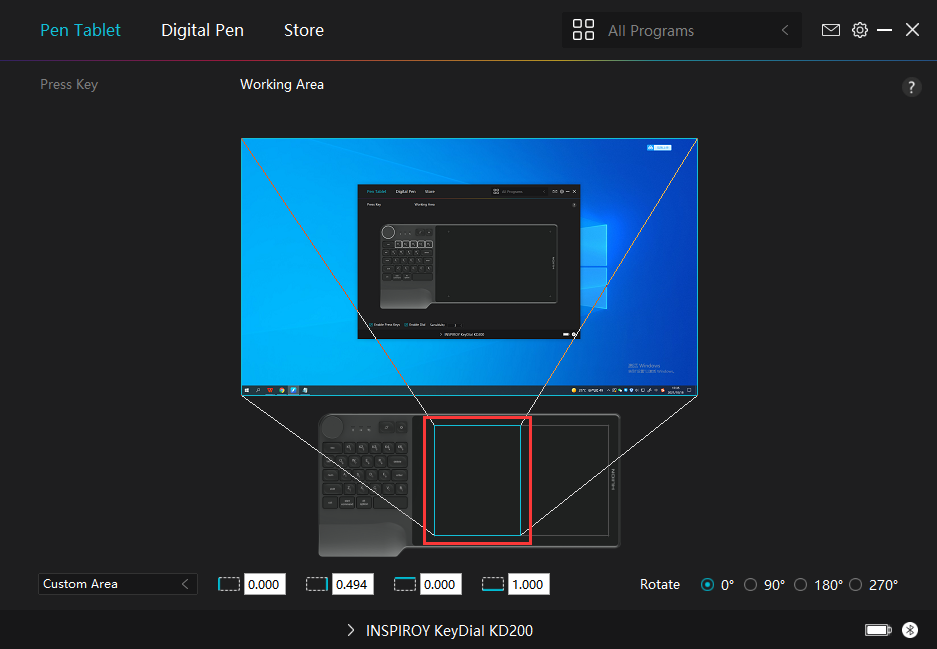

[3] Custom Area:

1> Enter coordinate values.

2> Users can adjust the working area of the pen tablet by changing the outlines of the smaller rectangle (see picture 1). Users can also drag the two blue rectangles to select the active areas of the digital pen on the screen and the pen tablet. (see picture 2 and 3).

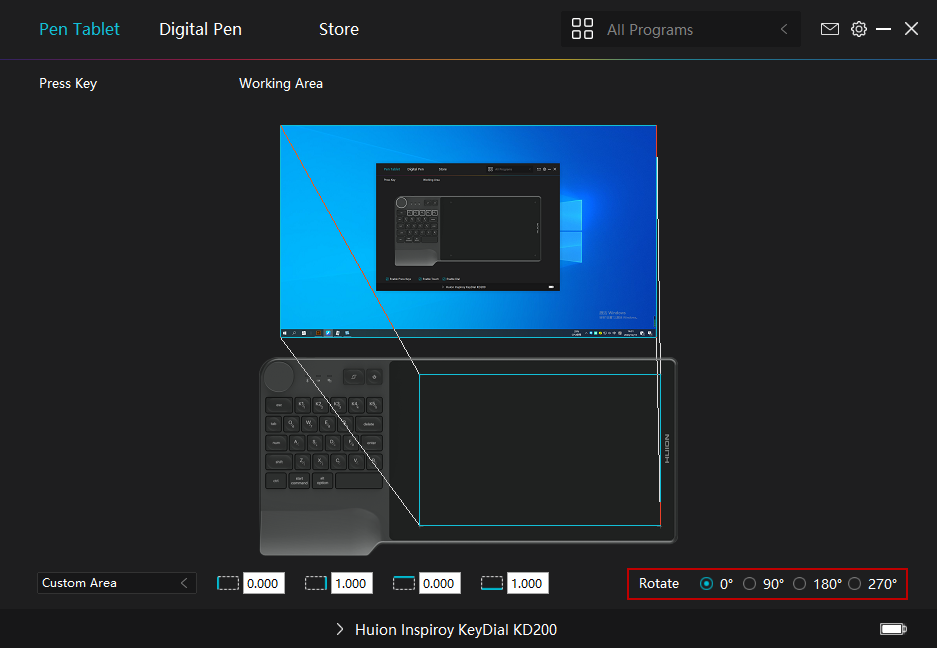

2. Rotate Working Area

By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°.

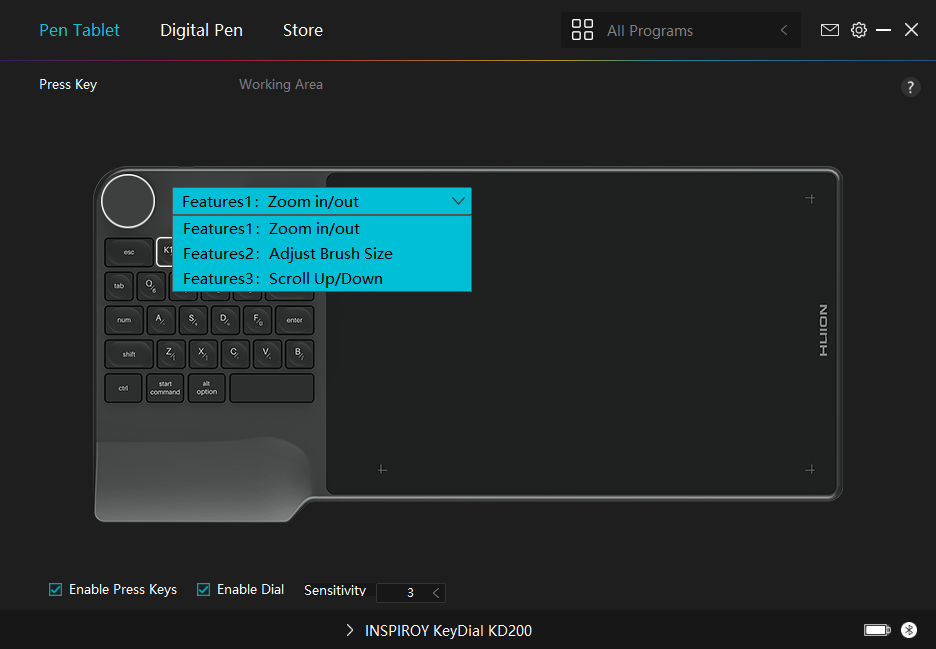

3. Dial Function Setting

Click the Dial to set the function of the dial controller. The default functions are “Zoom in/out”, “Adjust Brush Size”, and “Scroll Up/Down”. Click anyone of the three to change its function within four groups: Default, Multimedia, Customize the Feature, and None.


Refer to the table below to get detailed information of the functions.

DefaultFunctions include Zoom in/out, Adjust Brush Size, and Scroll Up/Down.
MultimediaFunctions are Previous Song/Next Song and Volume Settings.
Customize the FeatureClick on the input boxs (Clockwise and Anticlockwise) and enter valid key combinations to create shortcuts. After that, users can rotate the dial controller to implement the settings.
NoneWhen select None, the dial controller will have no function.
