Inspiroy Dial 2
Pen Tablet Setting

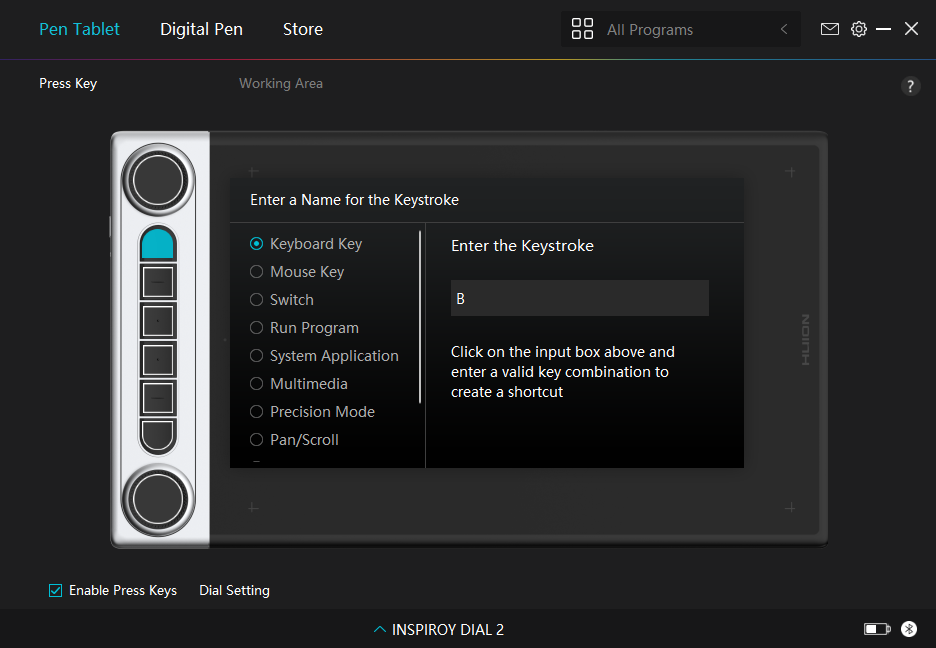

Press Key

You can customize the functions of these press keys according to your own habits. (You can also uncheck "Enable press keys" in the lower left corner to turn off these functions.)

1. Place the cursor over one of the buttons on the screen of your computer to check its default value.

2. Click a button and assign the function you want to it. (You can choose among the functions below.)

Refer to this table of settings below to help you decide if you want to change the existing settings.

Note: The performance of functions in the table below is up to the device that you have connected. And this table is subject to change without notice.

Keyboard KeyClick on the input box above and enter a valid key combination to create a shortcut.
Mouse Key

Select the functions of a Mouse or Wheel. Mouse: Mouse Left Button, Mouse Right Button, Mouse Middle Button, and Double-left Click. Wheel: Wheel Forward and Wheel Backward. Other functions: Ctrl, Alt, Shift, and Win.

SwitchSelect between Switch Screen, Switch Brush, Mouse Mode On/Off, and Game Mode On/Off.
Run ProgramClick Browse and select the program that you want to run quickly. After that, press the key to launch the item.
System ApplicationYou can apply these functions to press keys: Lock the Screen, Sleep, Power Off, Show/Hide Desktop, Task View, Start Menu, and Calculator.
MultimediaYou can apply these functions to press keys: Previous Song, Next Song, Play/Pause,Volume up, Volume down, and Muted.
Precision Mode

You can toggle between normal precision and a precision that you choose, from Fine to Ultra Fine. In the Precision Mode window that appears, move the slider to set the precision that you toggle into. For example, if you assign Precision Mode to a pen button, when you press the pen button, you switch to working in the precision that you selected from the slider. When you press the pen button again, you switch back to working in the normal precision. Press “Esc” or press the pen button for the third time to exit Precision Mode.

Pan/ScrollThis function allows you to pan and scroll in a document or item by moving the pen tip up and down or right and left.When you select Pan/Scroll, the Scroll Speed window appears. Move the slider to your preferred scrolling speed.
Quick MenuPick it up and you can use the key to pull up the Quick Menu. Detailed information for reference is down below this table.
Fixed Pressure SensitivityYou can lock the pressure at the current level until you release the component. For example, if you assign this setting to a pen button, you can paint with pressure sensitivity enabled in your application until you reach the brush size you like. Then, press and hold the pen button to lock in that brush size as long as you are pressing and holding the button.
NoneWhen select None, the keys will not work.

Note: The pictures are for reference only.

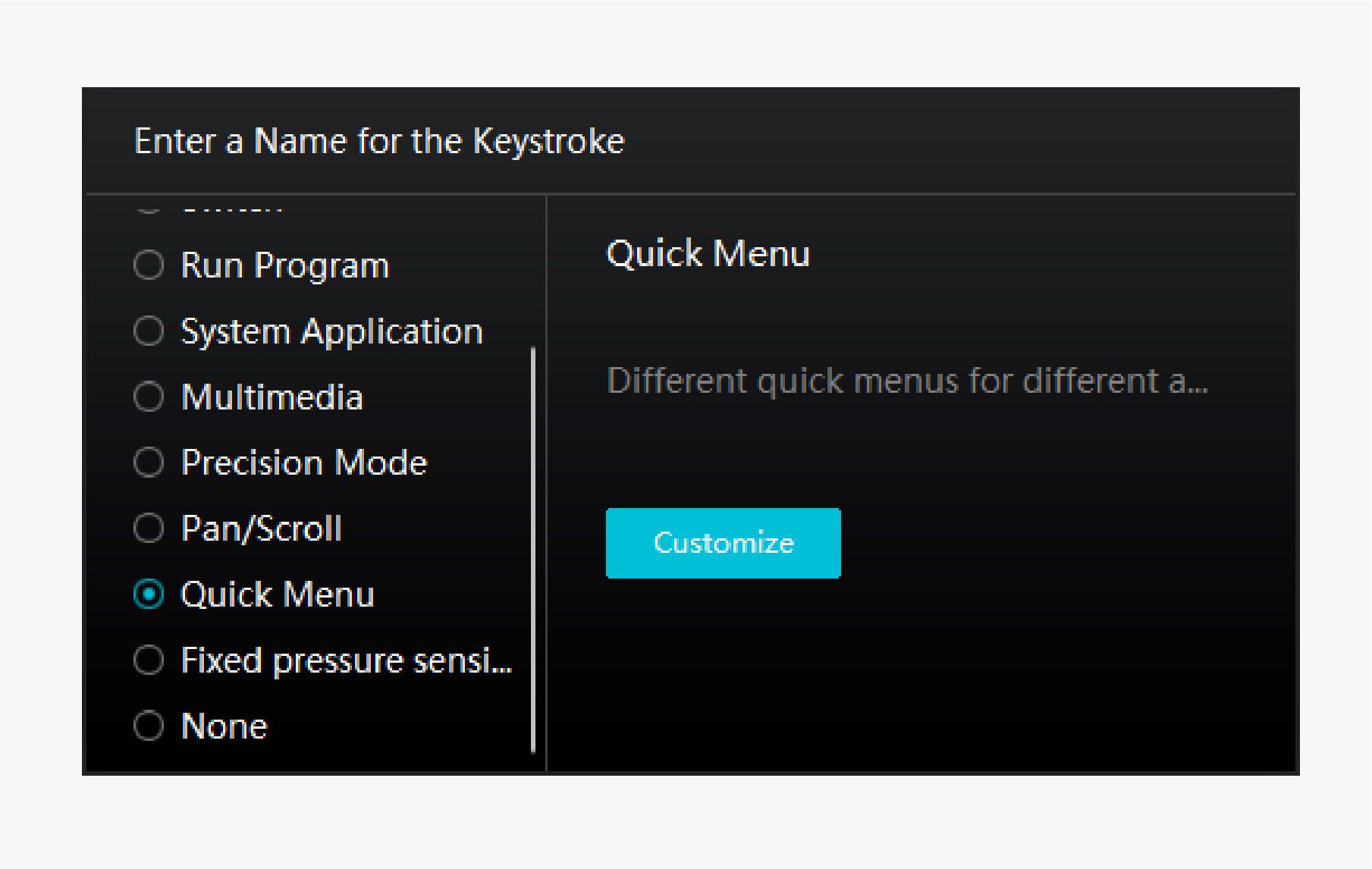

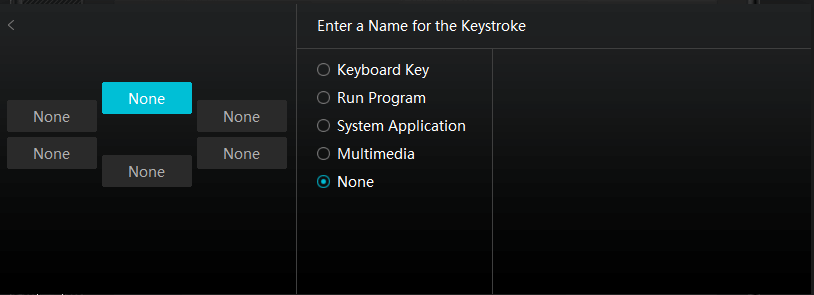

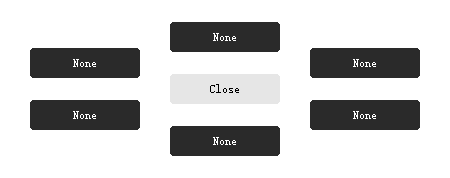

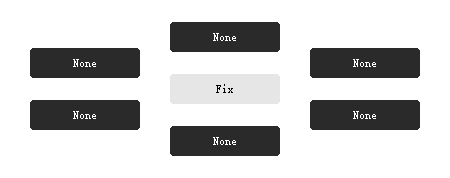

3.jpgClick Customize in the picture above to call out a quick menu (see picture 1). For each of the six buttons on the left, users can enter a name for it and set unique function for it. After that, users can call up the Quick Menu by pressing the key (see picture 2). The menu disappears after a click on any of the six buttons. By clicking “Fix” once the menu will be fixed on the desktop while after a second try the “Fix” button changes to “Close” and the menu disappears (see picture 3). Put the cursor on the menu to drag it.
                                                                                                       Picture 1
                                                                                                        Picture 2
                                                                                                         Picture 3

Working Area

Select the Working Area tab to adjust the ratio of the distance of pen movement on the pen tablet to that of the corresponding cursor movement on the monitor.

If only one monitor is in use:

By default the entire active area of pen tablet maps to the whole monitor.

If more than one monitor is in use:

① Extended mode: The monitors are in extended mode, and you need to choose one that will be mapped to on the driver interface and the other monitors will work as external displays.

② Mirror mode: In mirror mode (all monitors display the same content), the pen tablet maps to the entire screen on each monitor and cursors displayed on them move simultaneously.

1. Working Area Setting

Define the active working area of Inspiroy Dial 2 that will be mapped to the monitor. Three modes on the driver can be chosen:

[1] Full Area: The entire active area of the pen tablet will be mapped to the monitor. It is the default setting.

[2] Screen Ratio: The aspect ratio of the active pen tablet area depends on that of the display device. In Screen Ratio mode, these two ratios keep the same.

[3] Custom Area:

1> Enter coordinate values.

2> You can adjust the working area of the pen tablet by changing the outlines of the smaller rectangle (see picture 1). You can also drag the two blue rectangles to select the active areas of the digital pen on the screen and the pen tablet. (see picture 2 and 3).


                                                                                                                         Picture 1image.png                                                                                                                         Picture 2image.png                                                                                                                         Picture 3

2. Rotate Working Area

Both left-handed and right-handed users can freely use the pen tablet because it can be rotated by 0°, 90°, 180°or 270°.
